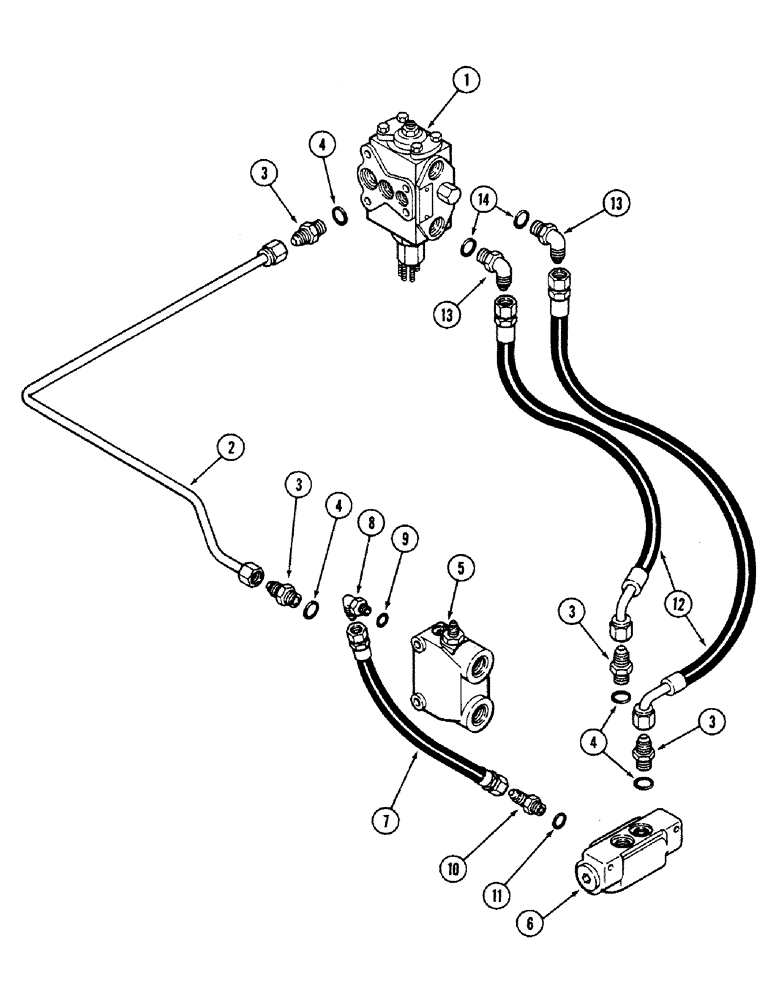

Запчасти Case IH 4694 (5-122) - REAR STEERING HYDRAULICS, CHECK VALVE (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering (See Figure 5-136)

1шт.

2

A161879

TUBE

ASSEMBLY - priority valve to steering valve

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 4

4шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-134)

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - check (See Figure 5-138)

1шт.

7

A161882

HOSE

ASSEMBLY - priority valve to check valve

1шт.

8

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16 thread x 1/4 tube 7/16 inch thread, Incl. Ref. 9

1шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64 inch width (9 ID x 2 MM width)

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16 inch thread, Includes: Ref. 11

1шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

12

A160449

HOSE

ASSEMBLY - steering valve to check valve

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable, 1/2 tube 3/4 inch thread, Includes: Ref. 14

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 MM width)

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 3/32 inch width (16 ID x 2 MM width)

1шт.
