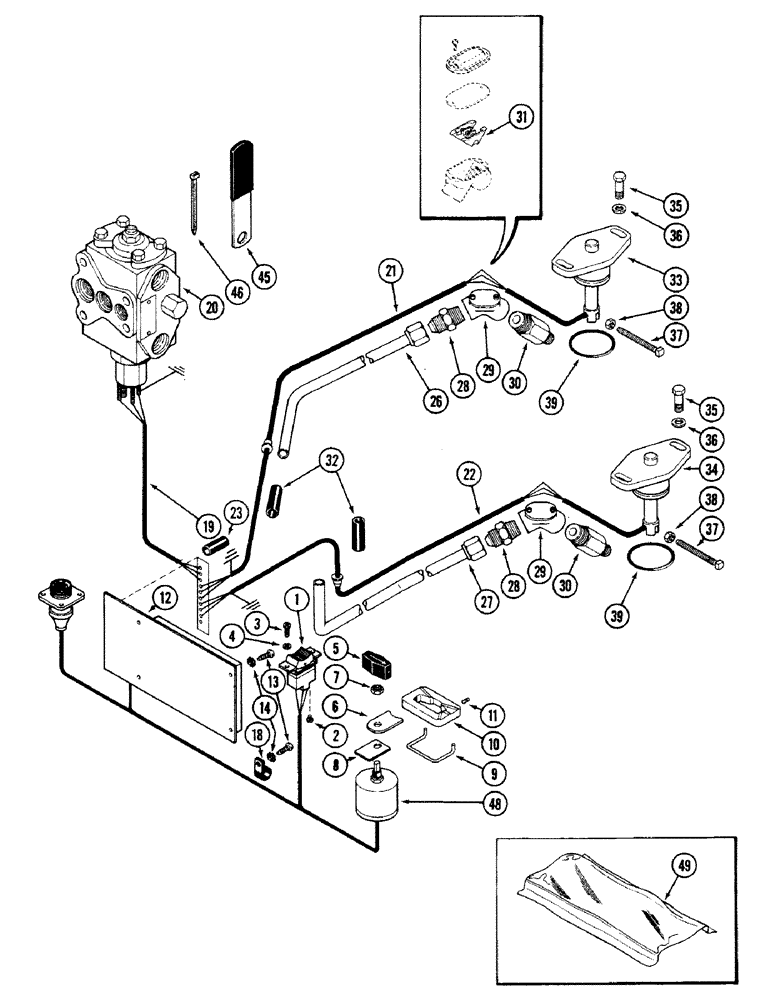

Запчасти Case IH 4694 (5-116) - STEERING ELECTRIC CONTROLS (05) - STEERING

1

A162070

SWITCH

ASSEMBLY - rocker, rear steering control, Includes: Ref. 2

1шт.

2

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- slotted pan head, no. 6-32 x 3/16 inch, brass

3шт.

3

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- Phillips pan head, no. 6-32 x 1/2 inch

2шт.

4

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

5

A160272

KNOB

- control box, steering

1шт.

6

A162042

PLATE

STRAP - switch retaining

1шт.

7

A39888

NUT

- hex, 3/8-32 inch special

1шт.

8

A160501

SPRING

- selector knob

1шт.

9

A160502

ELECTRICAL WIRE

WIRE - stop

1шт.

10

A162250

KNOB

- stop wire

1шт.

11

178-850

SET SCREW,Hex Soc, #6-32 x 1/4"

SCREW - hex socket, no. 6-32 x 1/4 inch

2шт.

12

A177107

CONTROL

MODULE ASSEMBLY - control (Replaces A166672)

1шт.

For controller A177107 with LED's, kit A187773 should be ordered. It contains switch 1987512C1 and a harness. The wiring of the switch is shown under the print of the kit A187773.

1шт.

13

187-1506

SELF-TAP SCREW,0.164"-32 x 1/2"

SCREW- self-tapping, no. 8-32 x 5/8 inch

7шт.

14

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

7шт.

18

49833

CLAMP

- wire to rear of console

2шт.

19

A160043

HARNESS

- wire, control box to control valve

1шт.

129-16

NUT,#8-32

(Harness to valve) #8-32

1шт.

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering control (See Figure 5-136)

1шт.

21

A160042

HARNESS

- wire, rear, Serial Range: sensor-box

1шт.

22

A160041

HARNESS

- wire, front, Serial Range: sensor-box

1шт.

23

A161254

SLEEVE

- shrink, harness to sensor lugs (Set of 3)

2шт.

Use 345-92 silicone protector.

1шт.

26

A149688

CONDUIT

- rear wire harness

1шт.

27

A149685

CONDUIT

- front wire harness

1шт.

28

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, 3/4 PT x 1/2 tube 3/4-16 inch thread

2шт.

29

A186289

ELBOW

ASSEMBLY - conduit to axle trunnion (Replaces 149530)

2шт.

20

A149605

CONNECTOR, ELEC

CONNECTOR - straight, 3/4 PT x 5/8-11 inch

2шт.

31

A186227

CONNECTOR, ELEC

BLOCK - insulator

2шт.

32

A161375

SLEEVE

- shrink, harness to conduit (Set of 2)

1шт.

33

A185742

TRANSMITTER

SENSOR ASSEMBLY - rear axle left trunnion (Replaces A149695)

1шт.

33

A185742R

REMAN-SENSOR

4694 CASE IH TRACTOR, SENSOR ASSEMBLY, rear axle left trunnion (1/83-12/86)

1шт.

33

A185742C

CORE-SENSOR

Return Number

1шт.

34

A185741

TRANSMITTER

SENSOR ASSEMBLY - front axle left trunnion (Replaces A149694)

1шт.

34

A185741R

REMAN-SENSOR

4694 CASE IH TRACTOR, , SENSOR ASSEMBLY, front axle left trunnion (1/83-12/86)

1шт.

34

A185741C

CORE-SENSOR

Return Number

1шт.

35

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

36

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

4шт.

37

A160466

SQUARE BOLT,1/4" - 20, SST

- set, Serial Range: sensor-trunnion

2шт.

38

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

39

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 ID x 1/8 inch width (51 ID x 3 MM width)

2шт.

45

A149744

CLAMP

- rear wire conduit

1шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

48

A167752

SWITCH

ROTARY SWITCH - replacement kit

1шт.

For controller A177107 with LED's, kit A187773 should be ordered. It contains switch 1987512C1 and a harness. The wiring of the switch is shown under the print of the kit A187773.

1шт.

49

A177018

COVER

- protective, vinyl

1шт.
