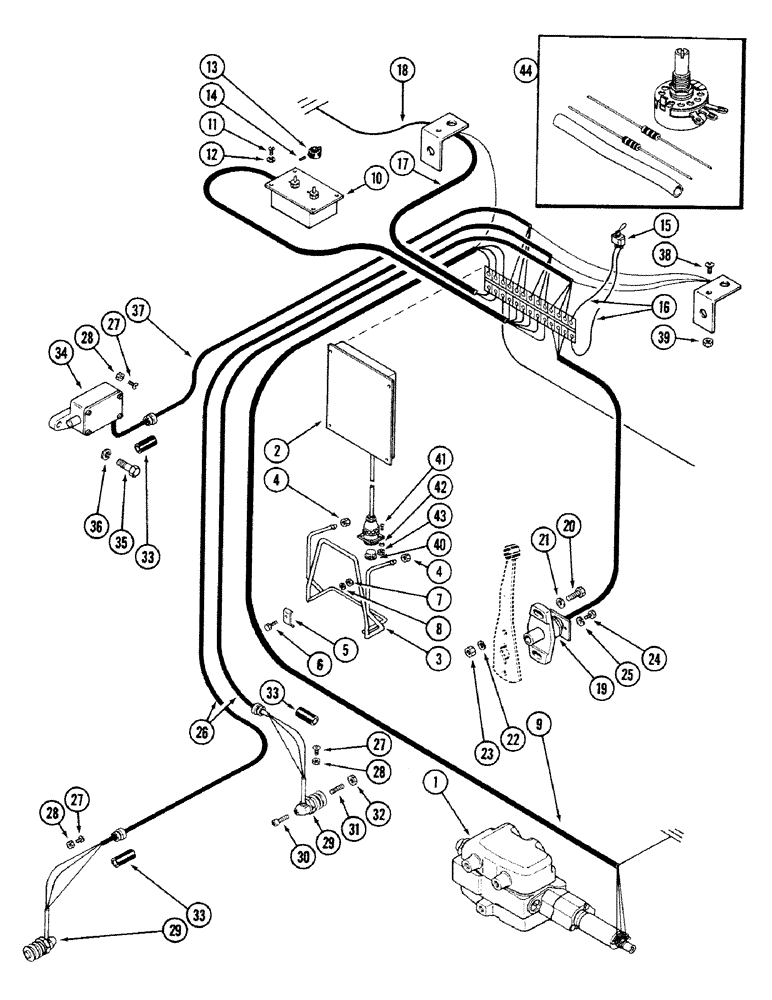

Запчасти Case IH 4694 (4-104) - ELECTRIC HITCH WIRING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch, control (See Figures 8-372 and 8-376)

1шт.

2

A176429

BOX

BOX - hitch control, new (Replaces A166673)

1шт.

2

AR176429

REMAN-ELECT MONITOR

REMAN-MONITOR BOX - hitch control, remanufactured

1шт.

2

AC176429

CORE-MONITOR

RETURN NUMBER - use this part number to return control box for credit

1шт.

3

A162600

BRACKET

BRACKET - control box

1шт.

4

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - hex, 7/16 inch self-threading

2шт.

5

A60224

CLAMP

CLAMP -, Serial Range: bracket-console

1шт.

6

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

1шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

9

A161981

HARNESS

HARNESS ASSEMBLY - wire, hitch valve

1шт.

10

A167145

BOX

CONTROL BOX - sensitivity, hitch

1шт.

11

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

SCREW - pan head, no. 8 x 5/16 inch pan head

1шт.

12

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

13

A169091

KNOB

KNOB - control box, sensing and draft

2шт.

14

176-408

SCREW - slotted set, no. 6-32 slotted (Order 178-859)

2шт.

15

A162764

SWITCH

SWITCH - reset

1шт.

16

A165198

ELECTRICAL WIRE

WIRE WIRE - reset switch

2шт.

17

A162427

CABLE PULLING GRIP

WIRE - ground, hitch valve

1шт.

18

A163035

ELECTRICAL WIRE

WIRE WIRE - hitch ground, Serial Range: console-frame

1шт.

19

A162359

TRANSMITTER

SENSOR - hitch lever

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

21

195-104

WASHER,3/8"

WASHER - flat, 7/16 x 1 x 1/16 inch (11 x 25 x 2 MM)

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

26

A161975

HARNESS

HARNESS ASSEMBLY - wire, draft arm

2шт.

27

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

SCREW - pan head machine, no. 6-32 x 3/16 inch (Brass)

9шт.

28

A167755

NUT

NUT - hex, no. 6-32 machine

9шт.

29

A165422

TRANSMITTER

SENSOR - draft arm

2шт.

30

165-131

HEX SOC SCREW,Self-Lkg, 5/16" - 18 x 1"

SCREW - hex socket head, 5/16 x 1 inch

2шт.

31

A166780

SET SCREW,3/8" - 24 x 47.80"

SCREW - special, sensor adjuster

2шт.

32

86585245

SPECIAL NUT,JAM, 5/8" - 18

NUT - hex jam, 3/8 inch NC

2шт.

33

A163365

SLEEVE

SLEEVE - shrink, sensor to harness lugs (Order A161254)

9шт.

A161254

SLEEVE

SLEEVE - shrink, (Packet of 3)

1шт.

34

REF

INSTRUCTION

SENSOR ASSEMBLY - rockshaft (See Figure 8-360)

1шт.

35

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

37

A161974

HARNESS

HARNESS ASSEMBLY - wire, rockshaft sensor

1шт.

38

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

SCREW - pan head machine, no. 8 x 5/8 inch

1шт.

39

129-16

NUT,#8-32

NUT, #8-32

1шт.

40

353-409

PLUG,Dome, .812" hole, Nylon

PLUG - protective (Heyco type)

1шт.

41

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

SCREW - Phillips head, no. 6-32 x 1/2 inch

3шт.

42

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

43

129-15

NUT,#6-32

NUT, #6-32

3шт.

44

A167596

KIT

Repair, Potentiometer

1шт.
