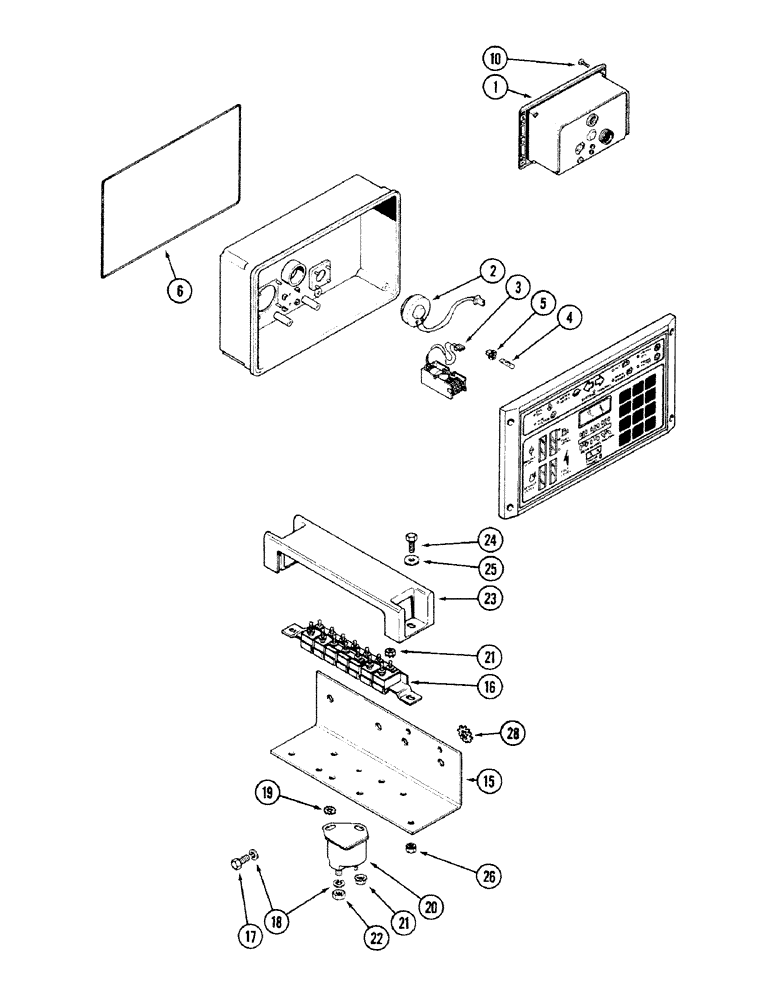

Запчасти Case IH 4694 (4-082) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

AR167765

INSTRUMENT CLUSTER

CLUSTER ASSEMBLY - instrument, remanufactured

1шт.

1

AC167765

CORE

RETURN NUMBER - use this number to return cluster for credit

1шт.

1

A167765

INSTRUMENT CLUSTER

CLUSTER ASSEMBLY - instrument, Includes: Ref. 2 - 6

1шт.

2

A48886

BUZZER

ALARM - brake, cluster

1шт.

3

A48887

GAUGE

COUNTER - cluster

1шт.

4

A48888

BULB

- cluster

5шт.

5

A48889

LAMP SOCKET

SOCKET - bulb, cluster

5шт.

6

A48890

GASKET

- instrument cluster

1шт.

10

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

- Phillips head, no. 10-24 x 3/4 inch

4шт.

15

A180715

SUPPORT

BRACKET - mounting, solenoid and circuit breaker

1шт.

16

A165723

BREAKER

ASSEMBLY - circuit, solenoid & circuit breaker mounting

1шт.

17

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Solenoid & circuit breaker mounting Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Solenoid & circuit breaker mounting 5/16"

4шт.

19

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external Shakeproof, 1/4 inch, solenoid & circuit breaker mounting

2шт.

20

A39079

SOLENOID

- starter, intermediate, solenoid & circuit breaker mounting

1шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex lock, no. 10-32, solenoid & circuit breaker mounting

6шт.

22

9635082

NUT,5/16" - 18, Gr 5

Solenoid & circuit breaker mounting 5/16"-18, G5

2шт.

23

A169929

COVER ASSY

COVER - circuit breaker bar, solenoid & circuit breaker mounting

1шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Solenoid & circuit breaker mounting Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

25

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 MM), solenoid & circuit breaker mounting

2шт.

26

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex Keps, 1/4 inch NC, solenoid & circuit breaker mounting

4шт.

28

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Solenoid & circuit breaker mounting Ext-Int Tooth, 1/2"

2шт.
