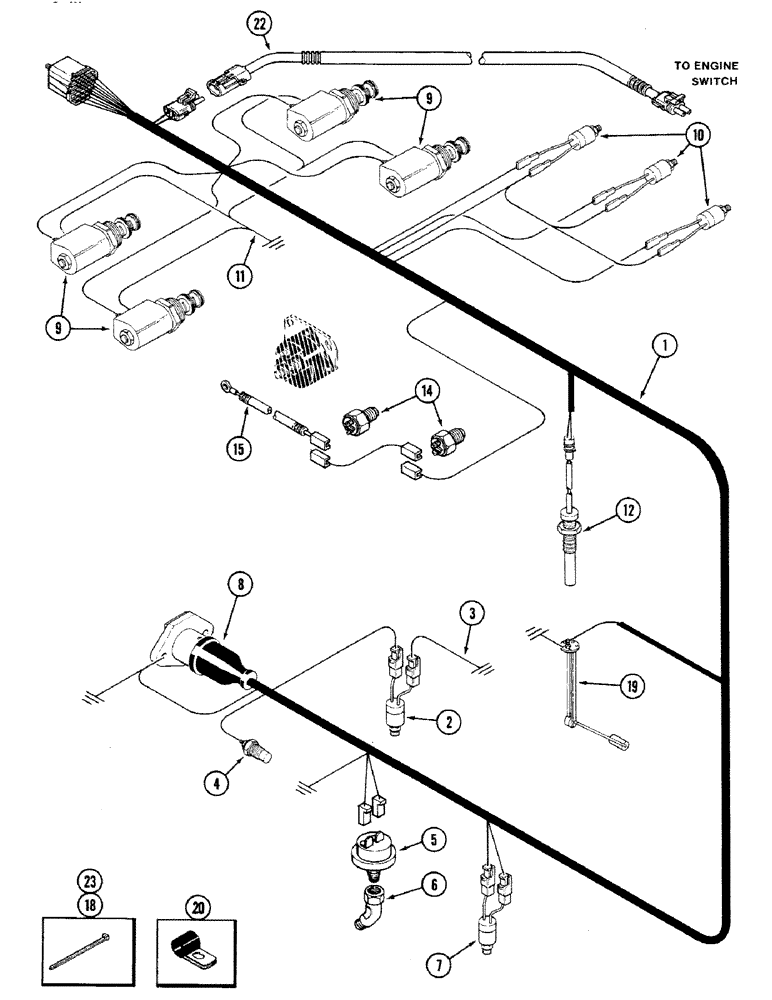

Запчасти Case IH 4694 (4-078) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A180906

HARNESS

ASSEMBLY - transmission (Replaces A165730)

1шт.

2

A162422

SWITCH

- transmission pressure

1шт.

3

A165731

ELECTRICAL WIRE

WIRE - pressure switch

1шт.

4

A154283

SWITCH

- transmission temperature

1шт.

5

A161461

SWITCH

- transmission differential pressure

1шт.

6

221-1401

ELBOW,45º, 1/8"-27, NPT

- 45 degree street, 1/8 inch PT

1шт.

7

A167895

SWITCH

- hydraulic filter pressure

1шт.

8

A145795

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - auxiliary outlet (See Figure 4-098)

1шт.

9

REF

INSTRUCTION

SOLENOID ASSEMBLY - electric shift (See Figure 6-144)

4шт.

10

A156555

SWITCH

- pressure, electric shift

3шт.

11

A157990

HARNESS

- ground, solenoid

1шт.

12

A156902

SENSOR

- speed, MPH

1шт.

14

A139078

SWITCH

- neutral start

2шт.

15

A176140

ELECTRICAL WIRE

WIRE - neutral start switch

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

A160044

SENDER UNIT

SENDER - fuel level

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLIP - retaining

1шт.

22

A180907

HARNESS

- pressure switch (If equipped)

1шт.

23

L76474

STRAP - tie, nylon

3шт.
