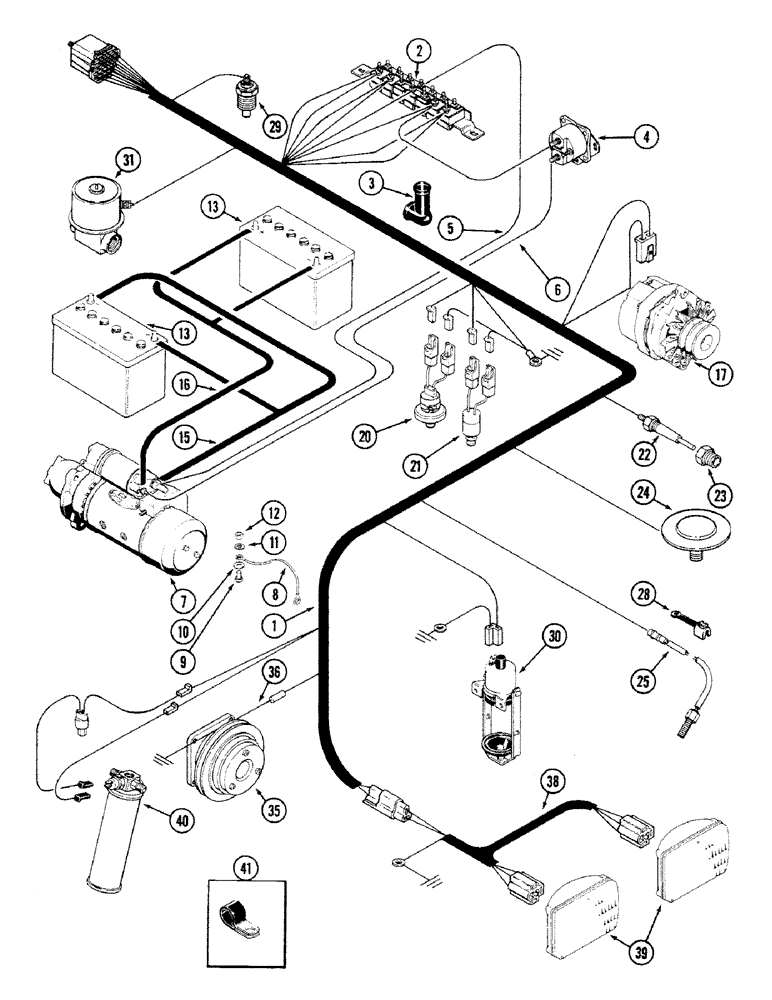

Запчасти Case IH 4694 (4-074) - ENGINE HARNESS, PRIOR TO P.I.N. 8866676 (04) - ELECTRICAL SYSTEMS

1

A165745

HARNESS

ASSEMBLY - engine

1шт.

2

A165723

BREAKER

ASSEMBLY - circuit (See Figure 4-082)

1шт.

3

A21753

CAP

BOOT - terminal, rubber

9шт.

4

A39079

SOLENOID

- intermediate, starter

1шт.

5

A166842

CABLE PULLING GRIP

CABLE - starter, Serial Range: solenoid-breaker

1шт.

6

A75825

CABLE

-, Serial Range: starter-solenoid

1шт.

7

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-088)

1шт.

8

A64704

STRAP

- ground, Serial Range: engine-frame

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 MM)

2шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

REF

INSTRUCTION

BATTERY - 12 volt (See Figure 4-084)

2шт.

15

REF

INSTRUCTION

CABLE - battery, positive (See Figure 4-084)

2шт.

16

REF

INSTRUCTION

CABLE - battery, negative (See Figure 4-084)

2шт.

17

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-092)

1шт.

20

A177628

SWITCH

- engine oil pressure, 8 PSI (55 kPa)

1шт.

21

A167644

PRESSURE SWITCH

SWITCH - engine oil pressure, 40 PSI (276 kPa)

1шт.

22

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

23

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

24

A154782

SWITCH

- restriction indicator, air

1шт.

25

REF

INSTRUCTION

SENSOR - magnetic, engine RPM (See Figure 3-048)

1шт.

28

A169696

CLAMP

- sensor wire

1шт.

29

A176566

TRANSMITTER

SENDER - water temperature (Replaces D65446)

1шт.

30

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether start (See Figure 2-016)

1шт.

31

REF

INSTRUCTION

SOLENOID - engine shut down (See Figure 4-102)

1шт.

35

REF

INSTRUCTION

CLUTCH - air compressor (See Figure 9-494)

1шт.

36

A169708

HARNESS

ASSEMBLY - air compressor

1шт.

38

A162317

HARNESS

ASSEMBLY - head lamp

1шт.

39

REF

INSTRUCTION

LAMP - head, tractor (See Figure 4-094)

2шт.

40

REF

INSTRUCTION

RECEIVER-DRIER - air conditioning (See Figure 9-488)

1шт.

41

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLIP - retaining

1шт.
