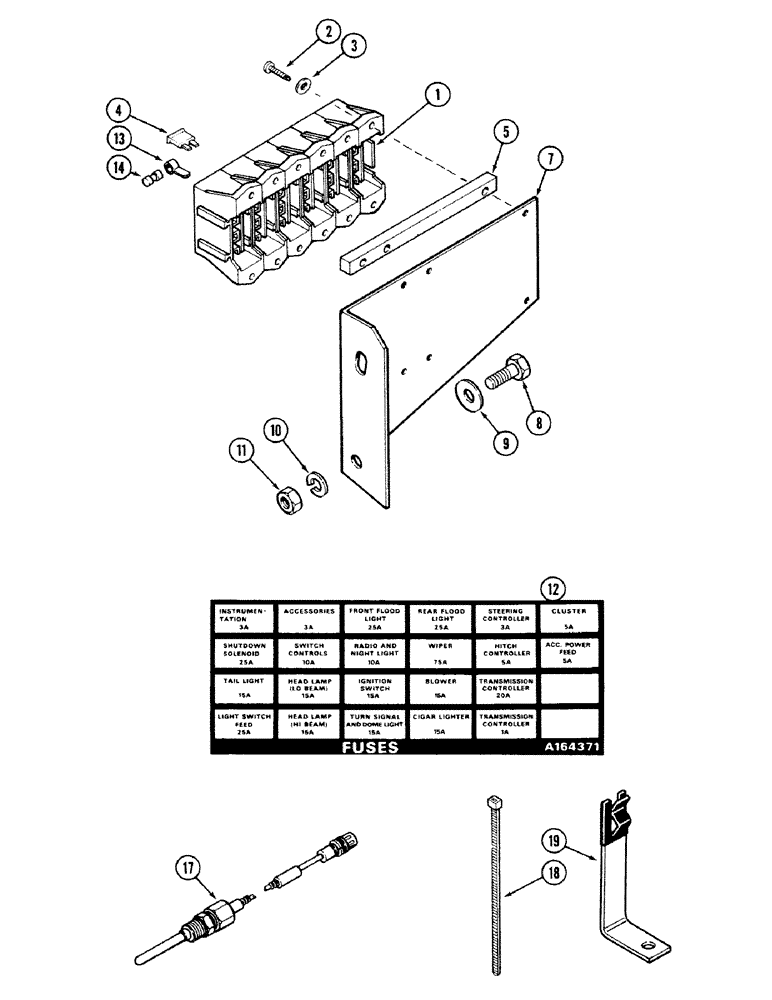

Запчасти Case IH 4694 (4-072) - FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HOLDER - fuse (Part of lower cab harness, see Figure 4-070)

1шт.

2

182-562

SCREW,Slotted Pan Hd, #10-24 x 7/8"

- Phillips pan head, no. 10-24 x 7 inch

4шт.

3

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 MM)

4шт.

4

A149796

FUSE

- 3 ampere (Violet color code)

3шт.

4

A149798

FUSE

- 5 ampere (Tan color code)

3шт.

4

A149799

FUSE

- 7.5 ampere (Brown color code)

1шт.

4

A149800

FUSE,10 Amp

- 10 ampere (Red color code)

2шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue color code)

7шт.

4

A149802

FUSE

- 20 ampere (Yellow color code)

1шт.

4

A149803

FUSE,25 Amp

- 25 ampere (White color code)

4шт.

5

A177177

BLOCK

SPACER - fuse holder

2шт.

7

A165224

PLATE ASSY.

PLATE - fuse holder mounting

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

A177334

DECAL

- fuse location (Replaces A164371)

1шт.

13

A163103

CLIP

- fuse mounting

2шт.

14

A163102

FUSE

- lamp, 1 ampere

1шт.

17

A162936

TRANSMITTER

THERMOCOUPLE - exhaust, pyrometer

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, pyrometer thermocouple

1шт.

19

A147023

BRACKET

- cable, thermocouple, pyrometer

1шт.
