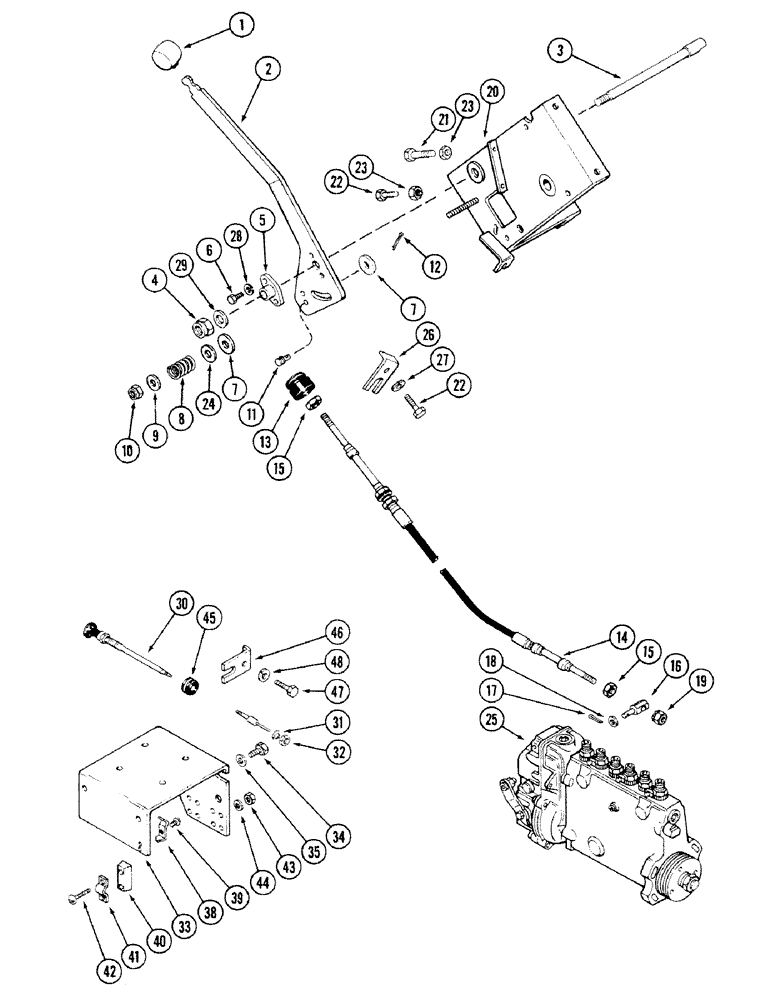

Запчасти Case IH 4694 (3-062) - THROTTLE LINKAGE 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

A177436

KNOB

- throttle lever (Replaces A167956)

1шт.

2

A169207

LEVER - throttle

1шт.

3

A169040

SHAFT

- control lever

1шт.

4

131-208

SPECIAL NUT,1/2"-13

NUT - hex lock, 1/2 inch NC

1шт.

5

A167680

CYLINDER END CAP

BEARING - throttle lever

1шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

7

A61069

DISC

- friction

2шт.

8

A26546

SPRING

- disc, 1-1/4 inch (32 MM) free length

1шт.

9

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

1шт.

10

131-52

NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

11

A177326

BALL JOINT

PIVOT - upper, control cable (Replaces A75386)

1шт.

12

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

A161072

GROMMET

- cable

1шт.

14

A145334

CABLE

- throttle control (68")

1шт.

15

129-37

NUT,#10-32

2шт.

16

A63014

PIVOT

- lower, control cable

1шт.

17

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

18

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- no. 10-32 hex Keps

1шт.

20

A177100

BRACKET

- control mounting (Replaces A167030)

1шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Throttle stop)

1шт.

22

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Throttle stop)

2шт.

23

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

24

195-2258

WASHER,33/64" x 1.120" x .109"

- flat, 1/2 x 1-1/8 x 1/8 inch (13 x 28 x 3 MM)

1шт.

25

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-052)

1шт.

26

A152518

BRACKET

- grommet

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

29

195-2069

WASHER,21/32" x 15/16" x .134"

- flat, 1 inch (25 MM)

1шт.

30

A165986

BOWDEN CONTROL

CABLE ASSEMBLY - fuel shut-off, Includes: Ref. 31 and 32

1шт.

31

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Fuel shut-off cable 7/16"

1шт.

32

425-117

NUT,7/16"-20, G5

- hex jam, 7/16 inch NF, fuel shut-off cable

1шт.

33

A160611

BRACKET

- control cables, fuel shut-off cable

1шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Fuel shut-off cable Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Fuel shut-off cable 3/8"

2шт.

38

B51765

CLIP

- shut-off cable, fuel

1шт.

39

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, no. 10-24 x 1/2 inch, fuel shut-off cable

1шт.

40

A160612

SPACER

- clamp, throttle cable, fuel shut-off

1шт.

41

A75815

CLAMP

- throttle cable, fuel shut-off

1шт.

42

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

- round head, no. 10-24 x 1-1/4 inch, fuel shut-off cable

1шт.

43

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10-24, fuel shut-off cable

1шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Fuel shut-off cable #10

1шт.

45

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- cable (Order S75334), fuel shut-off

1шт.

46

A152518

BRACKET

- grommet, fuel shut-off cable

1шт.

47

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Fuel shut-off cable Hex, 3/8"-16 x 1 1/2", G5

1шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Fuel shut-off cable 3/8"

1шт.
