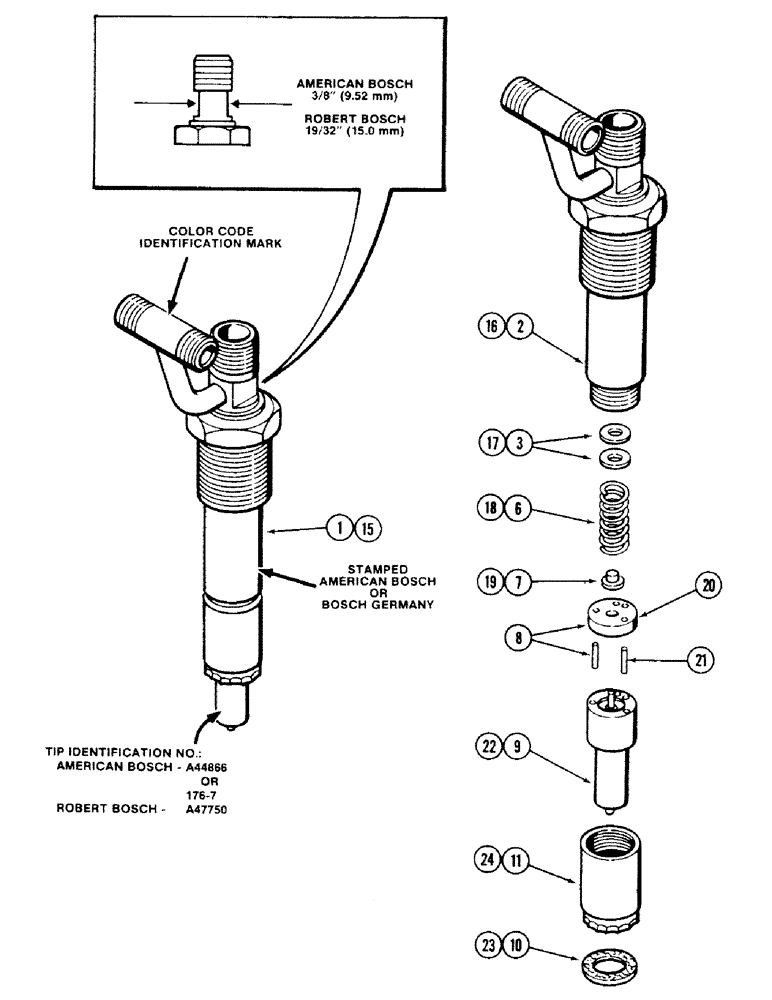

Запчасти Case IH 4694 (3-058) - FUEL INJECTOR NOZZLE, 504BDTI DIESEL ENGINE, ORANGE COLOR CODE INDENTIFICATION (03) - FUEL SYSTEM

A156325

FUEL SYSTEM INJECTOR

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 24

6шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch (Order A156325)

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangeable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156325)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 6 in kit, 0.062 inch (1.57 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 80 in kit, 0.002 inch (0.05 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.007 inch (0.18 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.010 inch (0.25 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 20 in kit, 0.025 inch (0.64 MM)

1шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

8

A44862

VALVE

STOP - nozzle assembly, with pin

1шт.

9

A44866

NOZZLE INJECTION

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.

15

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, Robert Bosch no. 0-432-131-884 (Order A156325), Includes: Ref. 16 - 24

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangeable. See illustration for identification.

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156325)

1шт.

A48186

KIT

- shim, nozzle, opening pressure (One kit required to repair six nozzles), Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.00 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.04 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.08 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.10 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.14 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.18 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.20 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.24 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.28 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.30 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.34 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.38 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.40 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.44 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.48 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.50 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.54 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.58 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.60 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.64 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.68 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.70 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.74 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.78 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.80 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.84 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.84 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.88 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.90 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.94 MM

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 5 in kit, 1.98 MM

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - nozzle pressure

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - nozzle pressure spring

1шт.

20

A48199

VALVE

STOP - nozzle

1шт.

21

A48200

PIN

- valve stop

2шт.

22

A47750

NOZZLE INJECTION

TIP ASSEMBLY - nozzle injector, Includes: Ref. 23

1шт.

23

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

24

A48201

NUT

CAP NUT - nozzle end

1шт.
