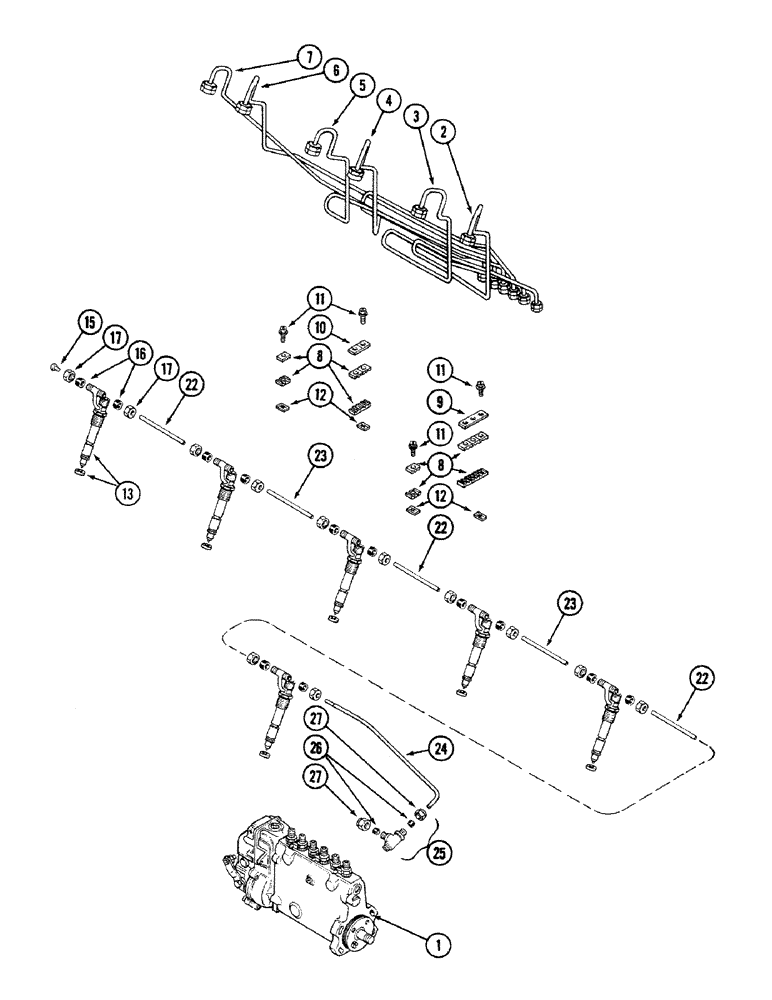

Запчасти Case IH 4694 (3-056) - FUEL INJECTION SYSTEM, 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-052)

1шт.

2

A156879

NOZZLE INJECTION

TUBE - fuel injection, no. 1 cylinder

1шт.

3

A156880

TUBE ASSY.

TUBE - fuel injection, no. 2 cylinder

1шт.

4

A156881

TUBE

- fuel injection, no. 3 cylinder

1шт.

5

A156882

TUBE

- fuel injection, no. 4 cylinder

1шт.

6

A156883

TUBE

- fuel injection, no. 5 cylinder

1шт.

7

A156884

TUBE

- fuel injection, no. 6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- bracket mounting (6 tubes)

1шт.

10

A58710

PLATE

- bracket mounting (4 tubes)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- hex slotted, no. 10-24 x 1 inch

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - speed, no. 10-24 Tinnerman

7шт.

13

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection (See Figure 3-058)

6шт.

15

47-37

RIVET,FH, 3/16" x 7/16"

- plug, 3/16 x 7/16 inch flat head

1шт.

16

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube (5 MM)

12шт.

17

222-111

TUBE NUT,7/16" - 24

NUT - 3/16 inch tube (5 MM)

12шт.

22

A76642

TUBE

- leak-off, 4-11/16 inch (119 MM) long

3шт.

23

A76641

TUBE

- leak-off, 5-3/4 inch (127 MM) long

2шт.

24

A153816

TUBE

- leak-off, no. 1, Serial Range: nozzle-valve

1шт.

25

A59097

VALVE

ASSEMBLY - check, Includes: Ref. 26 and 27

1шт.

26

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - 1/4 inch tube (6 MM)

1шт.
