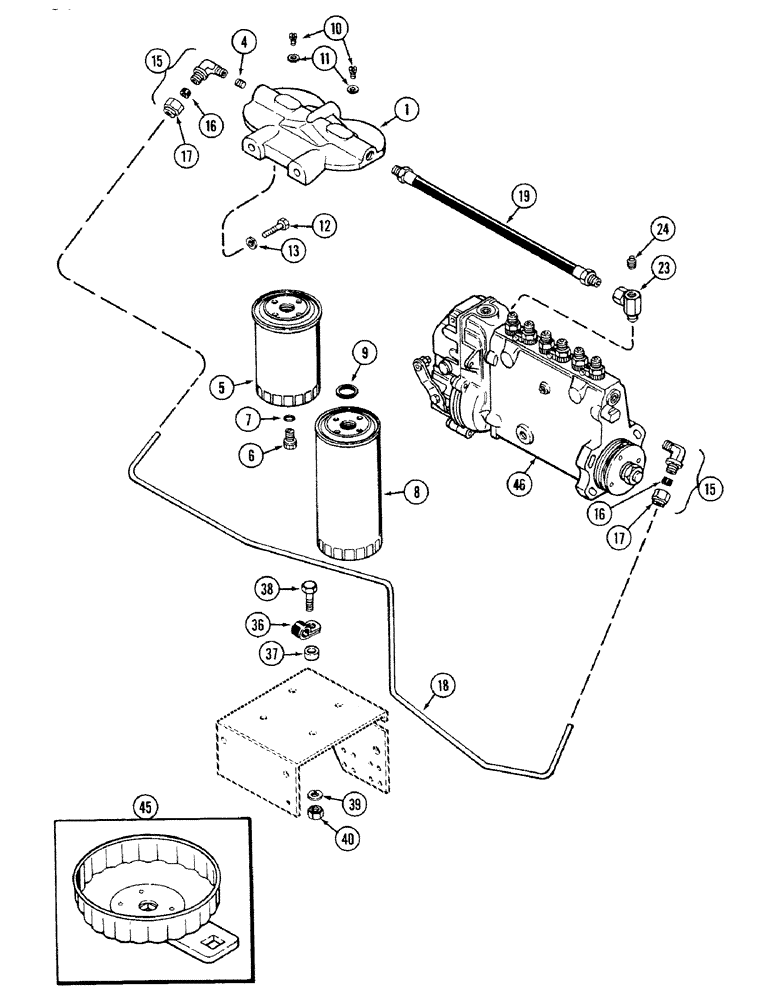

Запчасти Case IH 4694 (3-054) - FUEL FILTER SYSTEM, 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - filter mounting, Includes: Ref. 4

1шт.

4

222-1849

ELBOW,90 Degree, 17/32"-24 x 3/8" NPT, Comp

PLUG - socket, 1/8 inch PT

1шт.

A44068

FUEL FILTER

ELEMENT KIT - fuel filter, Includes: Ref. 5 - 8 and filter to head gasket

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER - first stage, Includes: Ref. 6 and 7

1шт.

6

G49080

PLUG

- plastic, 3/8 inch NC

1шт.

7

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - second stage, includes filter to head gasket

1шт.

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: filter-head

1шт.

Whenever filter is removed, gasket must also be removed and replaced with a new gasket.

1шт.

10

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

11

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - fuel line, 90 degree, 5/16 tube x 1/4 inch PT, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

(8 mm) 5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - 5/16 inch tube (8 MM)

1шт.

18

A157329

TUBE

-, Serial Range: pump-filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

-, Serial Range: filter-pump

1шт.

23

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8 inch PT

1шт.

36

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

CLIP - tube, Serial Range: pump-filter

1шт.

37

A59660

SPACER

- clip

1шт.

38

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

45

A64761

TOOL

- filter removal

1шт.

46

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-052)

1шт.
