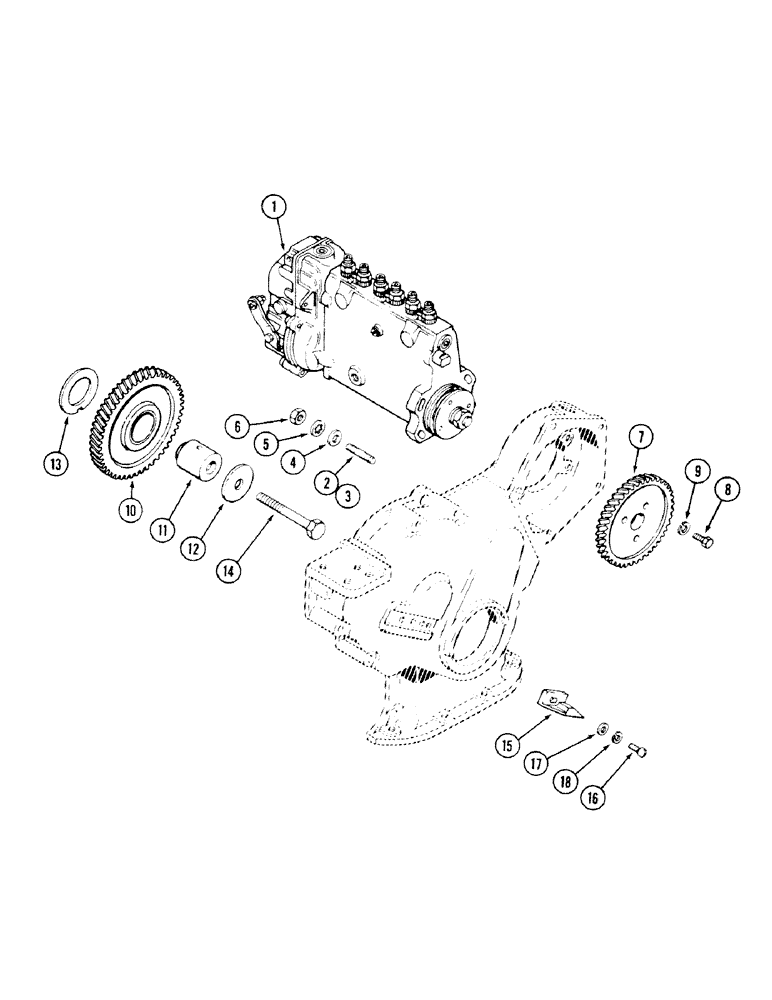

Запчасти Case IH 4694 (3-050) - FUEL INJECTION PUMP DRIVE, 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-052)

1шт.

2

A59077

STUD

- 3/8 NC x 1-15/16 inch

3шт.

3

A142092

STUD

- drilled, 3/8 NC x 1-7/8 inch

1шт.

4

A57470

WASHER

- flat, 13/32 x 11/16 x 1/16 inch (10 x 17 x 2 MM)

4шт.

5

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8 inch NC

3шт.

7

A58693

GEAR

- drive, injection pump

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

A62542

GEAR

ASSEMBLY - idler

1шт.

11

A58690

SHAFT

- idler gear

1шт.

12

A58691

WASHER

- thrust, idler

1шт.

13

A58692

PLATE

- thrust, idler

1шт.

14

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- fillister head slotted, no. 12-24 x 3/4 inch

1шт.

17

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16 inch (6 x 14 x 2 MM)

1шт.

18

192-108

LOCK WASHER,#12

WASHER - lock, no. 12

1шт.
