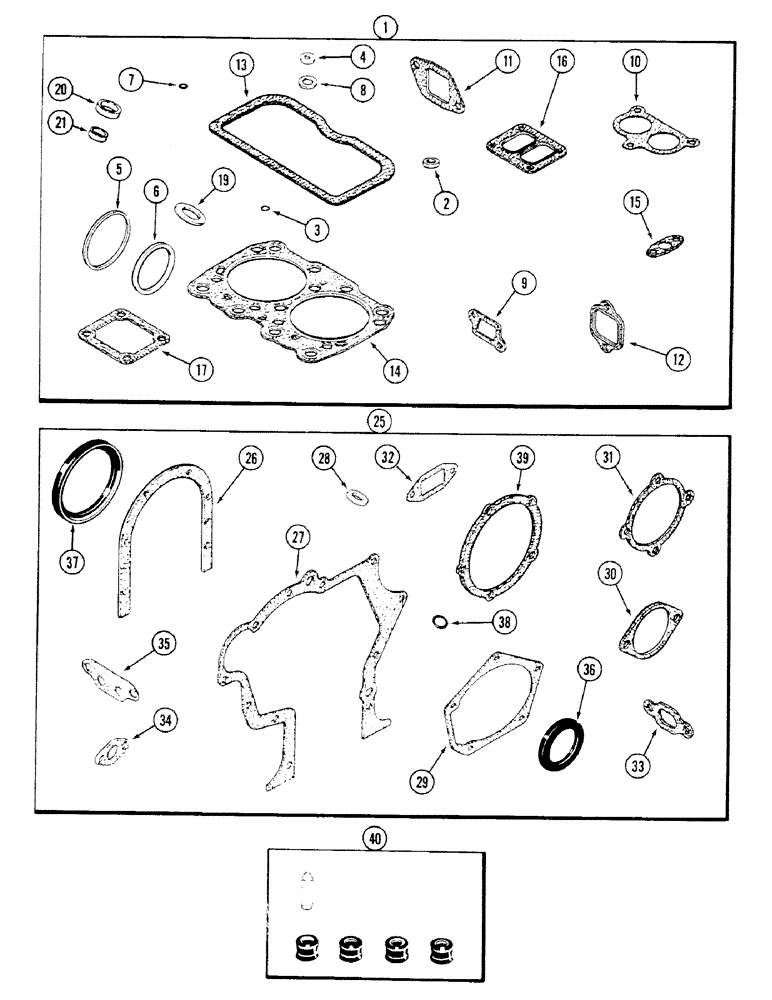

Запчасти Case IH 4694 (2-046) - ENGINE GASKET KITS, 504BDTI DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A157300

GASKET

KIT - valve grind, Includes: Ref. 2 - 21

1шт.

For a complete engine overhaul order A157300, A44075, A152479, and 3-M20614.

1шт.

2

A142098

GROMMET

- valve cover stud

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft tube

3шт.

4

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube screw

3шт.

5

A138817

RING,2.64mm Thk

SEAL - turbocharger exhaust

1шт.

6

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (See ref 40)

12шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

9

A166147

GASKET

- water manifold

3шт.

10

A166148

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58895

GASKET

- exhaust manifold

6шт.

13

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover

3шт.

14

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

- turbocharger mounting

1шт.

17

A58910

GASKET

- intake elbow

1шт.

19

A76640

GASKET

- injection nozzle

6шт.

20

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injection nozzle

6шт.

21

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle

6шт.

25

A44075

GASKET KIT

- cylinder block, Includes: Ref. 26 - 39

1шт.

For a complete engine overhaul order A157300, A44075, A152479, and 3-M20614.

1шт.

26

A32830

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

27

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

28

A58613

SEALING WASHER

GASKET - timing window plug (Not used this application), cylinder block kit

1шт.

29

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

30

A58617

GASKET

- pump opening (Not used this application), cylinder block kit

1шт.

31

A58646

GASKET

- water pump (Not used this application), cylinder block kit

1шт.

32

A58649

GASKET

- water pump body, cylinder block kit

1шт.

33

A58670

GASKET

- oil cooler tube to block, cylinder block kit

1шт.

34

A58680

OIL PAN GASKET SET

- oil cooler tube to pump, cylinder block kit

1шт.

35

A58756

OIL PAN GASKET SET

- oil filter base (Not used this application), cylinder block kit

1шт.

36

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front, cylinder block kit

1шт.

37

A62050

OIL SEAL

- oil, crankshaft rear, cylinder block kit

1шт.

38

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil pump and filter base, cylinder block kit

3шт.

39

A76656

GASKET

- water pump, cylinder block kit

1шт.

40

M20614

SEAL KIT

- valve seal (Includes 4 seals and tool), cylinder block kit

3шт.
