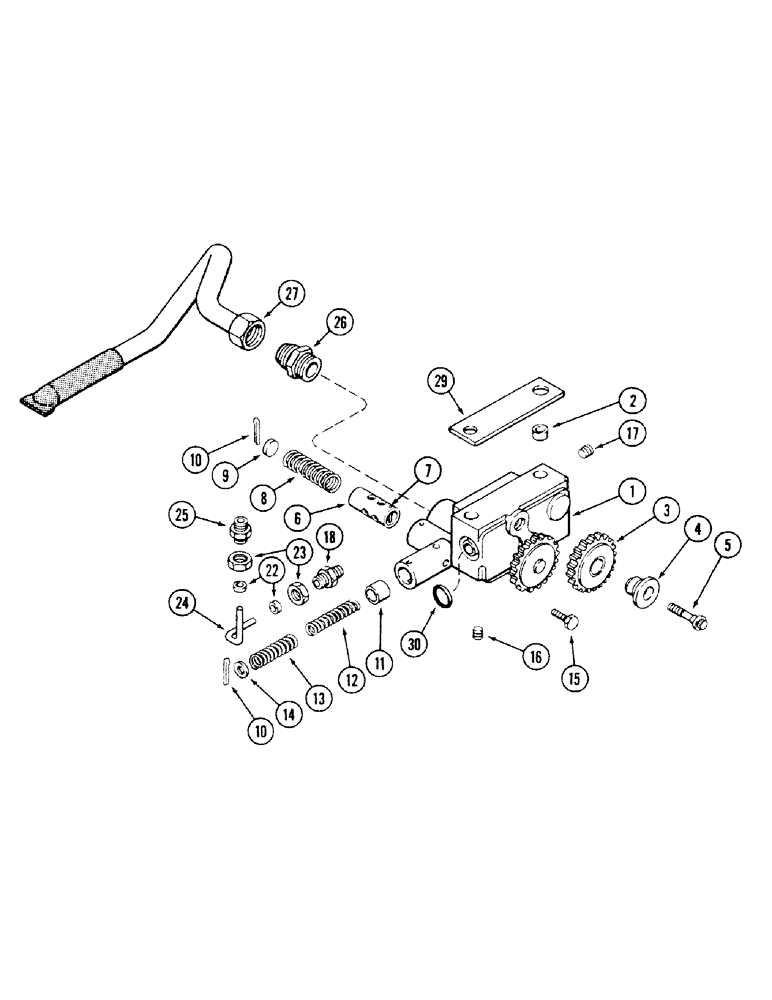

Запчасти Case IH 4694 (2-042) - OIL PUMP, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A152998

PUMP

ASSEMBLY - oil, Includes: Ref. 2 - 18

1шт.

2

A58915

SLEEVE

- locating

1шт.

3

A63941

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - cap, left thread

1шт.

6

A75286

VALVE

ASSEMBLY - relief (Includes cap plug), Includes: Ref. 7

1шт.

7

138-2063

PIN,3/32" x 1", Coiled

1шт.

8

A63949

SPRING

- relief valve, 2-7/8 inch (73 MM) free length

1шт.

9

41-1016

PLUG,Cup, 1"

- relief valve

1шт.

10

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), 3/32" x 1 3/4"

2шт.

11

A76152

VALVE

- safety, pressure relief

1шт.

12

A76154

SPRING

- inner, 3-7/64 inch (79 MM) free length

1шт.

13

A76153

SPRING

- outer, 2-7/16 inch (62 MM) free length

1шт.

14

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

1шт.

15

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

16

221-850

PLUG,Hex Soc, 1/16"-27

- socket head, 1/16 inch PT

3шт.

17

221-843

PLUG,Hex Soc, 3/8"-18

- socket head, 3/8 inch PT

1шт.

18

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - 1/4 tube x 1/8 inch PT

1шт.

22

222-153

SLEEVE,1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT - 1/4 inch tube

2шт.

24

A75290

TUBE

- sensing, oil gallery

1шт.

25

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - 1/4 tube x 1/8 inch PT (In block)

1шт.

26

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

27

A142503

SCREEN

TUBE ASSEMBLY - suction (Includes screen)

1шт.

29

A58859

SHIM,.005" Thk

Pump mounting (0.127 mm) .005" Thk

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil port, 59/64 ID x 7/64 inch wide (23 ID x 3 MM wide)

1шт.
