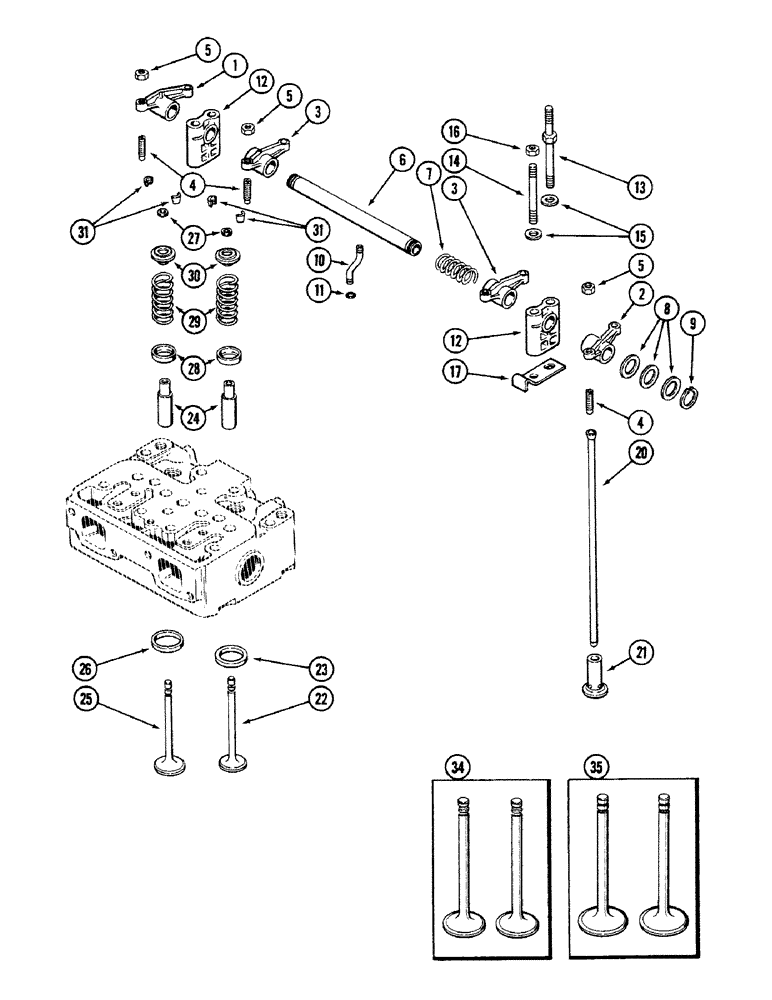

Запчасти Case IH 4694 (2-032) - VALVE MECHANISM, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valve, no. 1, 3 and 5 cylinder, Includes: Ref. 4 and 5

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valve, no. 2, 4 and 6 cylinder, Includes: Ref. 4 and 5

1шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valve, Includes: Ref. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF

1шт.

6

A150545

SHAFT

- rocker

3шт.

7

A27877

SPRING

- rocker shaft

3шт.

8

A27878

WASHER

- 29/32 x 1-5/16 x 1/32 inch (23 x 33 x 1 MM)

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- 3/16 ID x 1/16 inch wide (5 ID x 2 MM wide)

3шт.

12

A61128

BRACKET

- rocker shaft

6шт.

13

A67121

STUD

- rocker shaft bracket and cover

6шт.

14

A58659

STUD

- bracket, 7/16 NC x 4-5/16 inch

6шт.

15

195-29

WASHER,7/16"

- 15/32 x 59/64 x 5/64 inch (12 x 23 x 2 MM)

12шт.

16

25-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

6шт.

17

A157197

STRAP

- rockshaft bracket

6шт.

20

A157328

ROD

- push

12шт.

21

A20865

TAPPET

LIFTER - push rod

12шт.

22

A182175

VALVE

- exhaust, hardened tip (Order ref 34)

6шт.

23

A66192

INSERT

- exhaust valve seat

6шт.

24

A41783

GUIDE

KIT - valve stem (See page 2-30)

12шт.

25

A182174

VALVE,ENGINE,INLET,S

VALVE - intake, hardened tip (Order ref 35)

6шт.

26

A66191

INSERT

- intake valve seat

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- valve spring

12шт.

29

A66444

SPRING

- valve, 2-3/16 inch (56 MM) free length

12шт.

30

A66336

ROTATOR

ROTOCOIL - valve

12шт.

31

A27872

LOCK

- valve spring

24шт.

34

A46289

VALVE

KIT - exhaust (Set of 2)

3шт.

35

A44575

VALVE

KIT - intake (Set of 2)

3шт.
