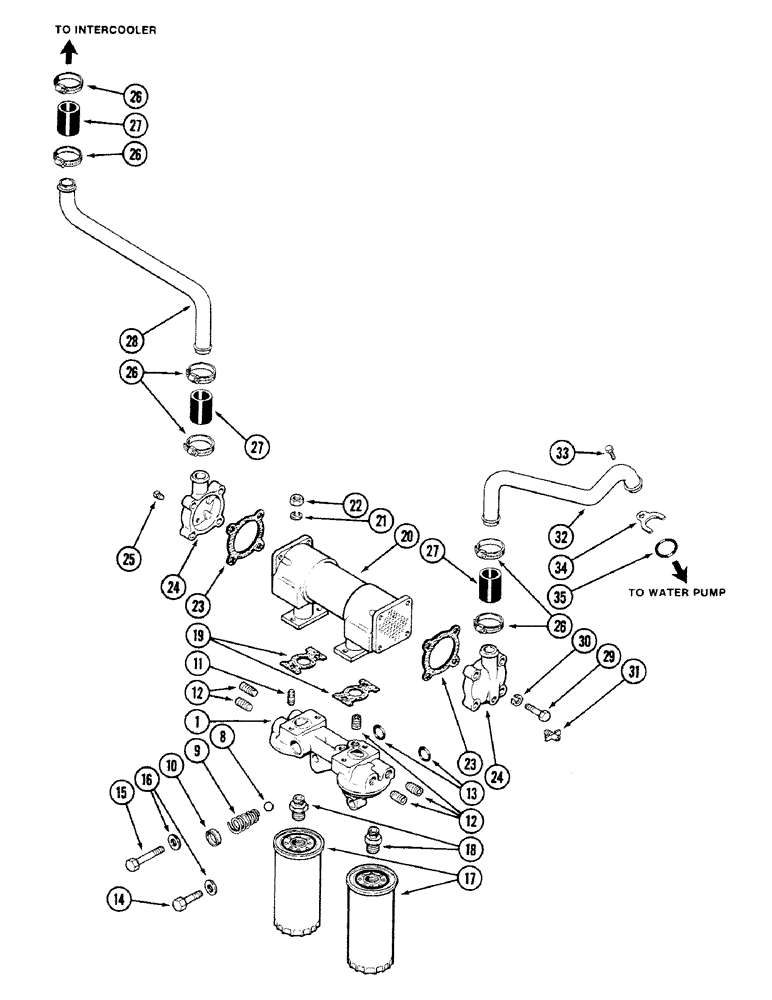

Запчасти Case IH 4694 (2-028) - OIL FILTER AND HEAT EXCHANGER, 504BDTI DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A154541
BASE
ASSEMBLY - filter and heat exchanger, Includes: Ref. 8 - 12
1шт.
8
211-17
BALL,3/4" Dia
- relief valve, 3/4 inch (19 MM) diameter
1шт.
9
A146897
SPRING
- relief
1шт.
10
41-1020
PLUG,Cup, 1 1/4"
- cup type, 1-1/4 inch (32 MM)
1шт.
11
G102128
BOLT
- 3/8 NC x 1-5/16 inch
4шт.
12
221-844
PLUG,Hex Soc, 1/2"-14
- hex socket head, 1/2 inch PT
5шт.
13
A64434
O-RING,0.93" ID x 1.142" x 0.106"
- 59/64 ID x 7/64 inch width (23 ID x 3 MM width)
2шт.
14
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
15
113-425
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1шт.
16
195-533
WASHER,1/2", SAE
- 17/32 x 1-1/16 x 7/64 inch (13.5 x 37 x 3 mm)
2шт.
17
NSS
NOT SOLD SEPARAT
ELEMENT - oil filter (J I Case Company installed, 6-7/8 inch long (175 MM) (Order A44081)
2шт.
17
A44081
ENGINE OIL FILTER
ELEMENT - oil filter (For service, 8-5/8 inch long) (219 MM)
2шт.
18
A63916
ADAPTER
-, Serial Range: filter-base
2шт.
19
A65359
GASKET
- heat, Serial Range: exchanger-base
2шт.
20
A75295
OIL COOLER
HEAT EXCHANGER - oil
1шт.
21
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
22
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
23
A63920
GASKET
- cover
2шт.
24
A64349
HOOD
COVER - end, heat exchanger
2шт.
25
221-1849
PLUG
- square head, 1/8 inch PT
1шт.
26
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4 inch (30 x 44 MM)
6шт.
27
A58640
HOSE
- by-pass
3шт.
28
A144426
TUBE
- intercooler to heat exchanger
1шт.
29
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
8шт.
30
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
31
217-107
VALVE
- drain, 1/8 inch PT
1шт.
32
A76664
PIPE
TUBE - heat exchanger to water pump
1шт.
33
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
1шт.
34
A76666
CLAMP
- tube
1шт.
35
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
- 1-1/8 ID x 1/8 inch width (29 ID x 3 MM width)
1шт.
Выбрано товаров: 30
