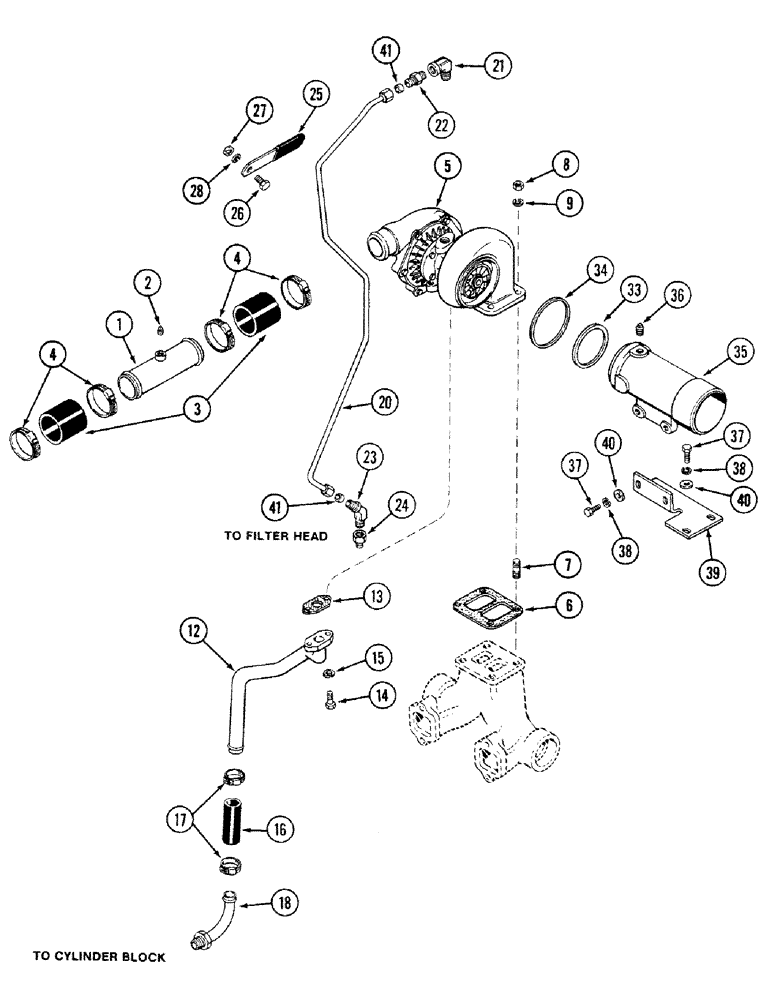

Запчасти Case IH 4694 (2-024) - TURBOCHARGER SYSTEM, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A144406

TUBE

- air intake

1шт.

2

221-1849

PLUG

- square head, 1/8 inch PT

1шт.

3

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

2шт.

4

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33 x 57 mm) #28, 1.31/2.25 Type F Worm

4шт.

5

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - (See Figure 2-026)

1шт.

6

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

7

G102128

BOLT

- turbocharger, 3/8 NC x 1-7/16 inch

4шт.

8

131-903

NUT,3/8"-16

NUT - hex, Seez-Pruf, 3/8 inch NC

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

A62518

TUBE

- oil drain, turbocharger

1шт.

13

A58892

GASKET,1.59mm Thk

- tube flange

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain

1шт.

17

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 x 44 mm)

2шт.

18

A58897

FITTING

- drain, Serial Range: hose-block

1шт.

20

A166064

TUBE

ASSEMBLY - oil supply

1шт.

21

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street 90 degree, 1/4 PT male x 1/4 inch PT female

1шт.

22

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - turbocharger, 3/8 tube x 1/4 inch

1шт.

23

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- 45 degree, 3/8 tube x 3/8 inch PT

1шт.

24

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 3/8 to 1/4 inch PT

1шт.

25

A22883

CLIP

CLAMP - tube

1шт.

26

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

A138817

RING,2.64mm Thk

- seal, turbocharger outlet

1шт.

34

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- outlet elbow

1шт.

35

A166231

EXHAUST SYSTEM PIPE

ELBOW - exhaust outlet

1шт.

36

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square head, 1/4 inch PT

1шт.

37

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

39

A152391

BRACKET

- outlet elbow

1шт.

40

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

5шт.

41

222-154

SLEEVE,3/8" Tube

- supply tube

2шт.
