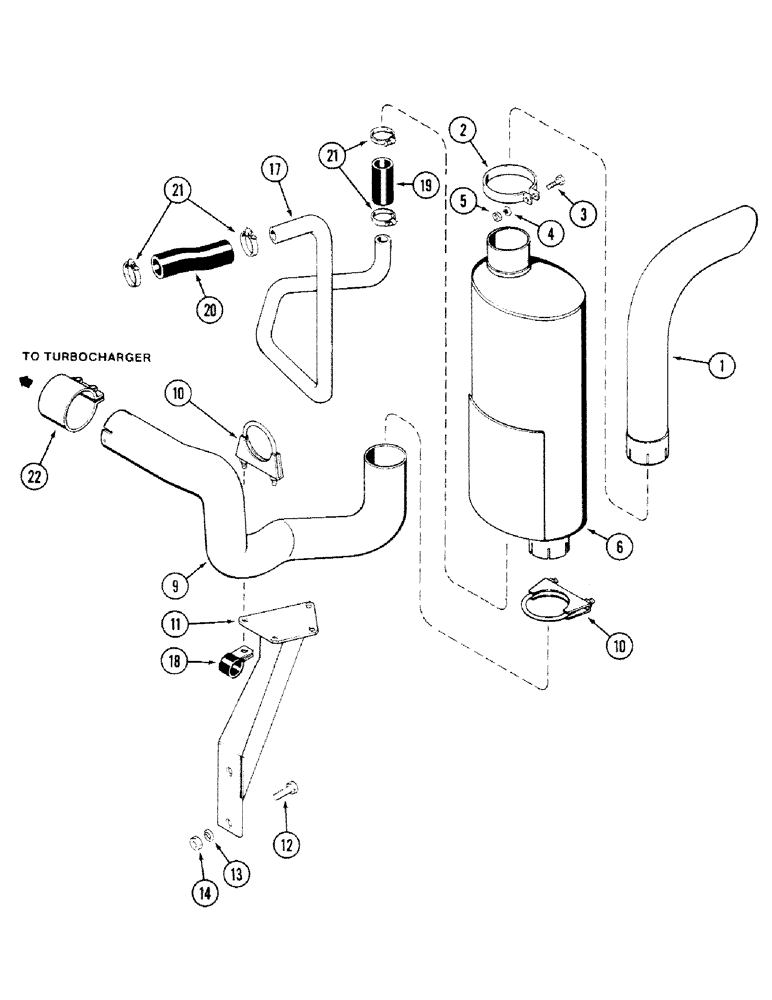

Запчасти Case IH 4694 (2-022) - MUFFLER AND ASPIRATOR, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A180204

TUBE

PIPE - exhaust, muffler (Replace A147045)

1шт.

2

A162895

CLAMP

-, Serial Range: pipe-muffler

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

A162464

MUFFLER

- exhaust

1шт.

9

A180207

PIPE, EXHAUST SYSTEM

PIPE - exhaust, turbocharger to muffler (Replaces A149903)

1шт.

10

A162896

CLAMP

ASSEMBLY - pipe (Includes hardware)

3шт.

11

A149547

SUPPORT

- exhaust pipe

1шт.

12

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

129-107

NUT,5/8"-11, G5

2шт.

17

A149566

TUBE

- aspirator

1шт.

18

49773

CLAMP

-, Serial Range: tube-support

1шт.

19

R43922

HOSE

- aspirator tube to muffler (Order R45924, Serial Range: cut-length)

1шт.

20

A152624

INTAKE AIR HOSE,1.50" ID x 7.50", SAE 20R4

1.50" ID x 7.50", SAE 20 R4 - Aspirator tube to pre-cleaner

1шт.

21

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(40 x 63 mm) #28, 1.31/2.25 Type F Worm

4шт.

22

A149249

ASSEMBLY

CLAMP - muffler pipe

1шт.
