Запчасти Case IH 4694 (2-020) - EXHAUST MANIFOLD, 504BDTI DIESEL ENGINE (02) - ENGINE

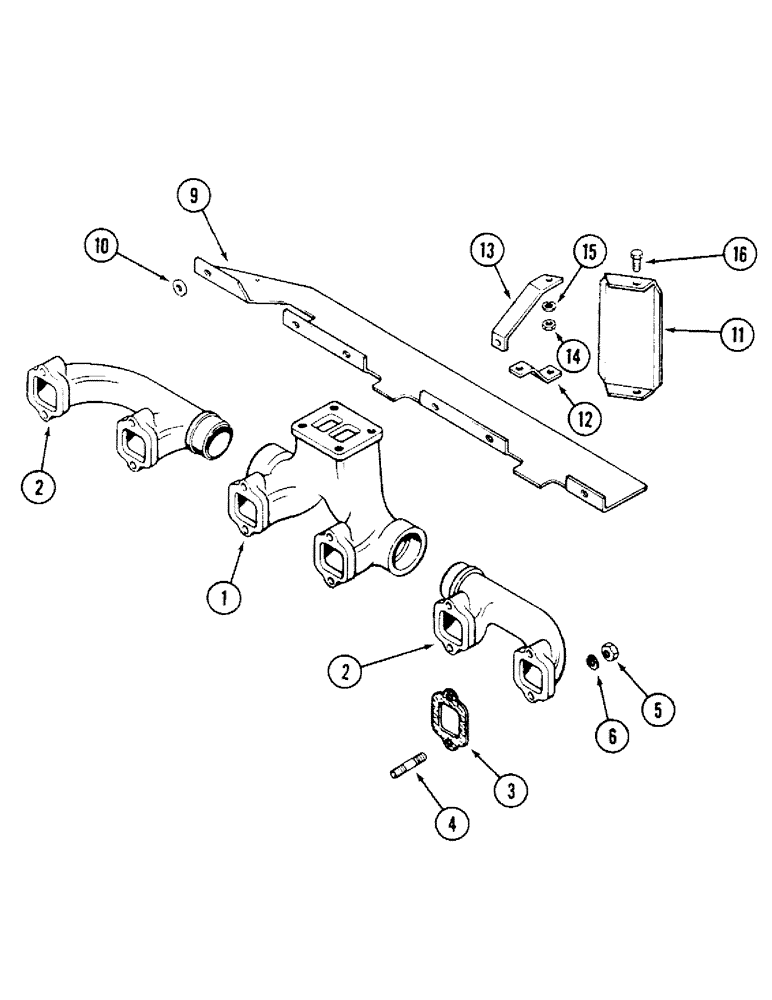

Схема запчастей Case IH 4694 - (2-020) - EXHAUST MANIFOLD, 504BDTI DIESEL ENGINE (02) - ENGINE
11
2
12
13
9
5
2
3
4
1
15
10
14
16
6

Артикул

Название

Примечание

Количество

1

A76322

MANIFOLD

- exhaust, center section

1шт.

2

A65917

MANIFOLD

- exhaust, end section

2шт.

3

A58666

MANIFOLD GASKET

-, Serial Range: manifold-head

6шт.

4

A140924

STUD

- manifold to head, 3/8 inch NC x 2-7/16 inch

12шт.

5

131-903

NUT,3/8"-16

NUT - hex, Seez Pruf, 3/8 inch NC

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

9

A76351

GUARD

SHIELD - heat

1шт.

10

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 20 x 2 MM)

6шт.

11

A76188

GUARD

SHIELD - manifold

1шт.

12

A76187

SUPPORT

- upper, shield

1шт.

13

A77069

SUPPORT

- lower, shield

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

Выбрано товаров: 14
