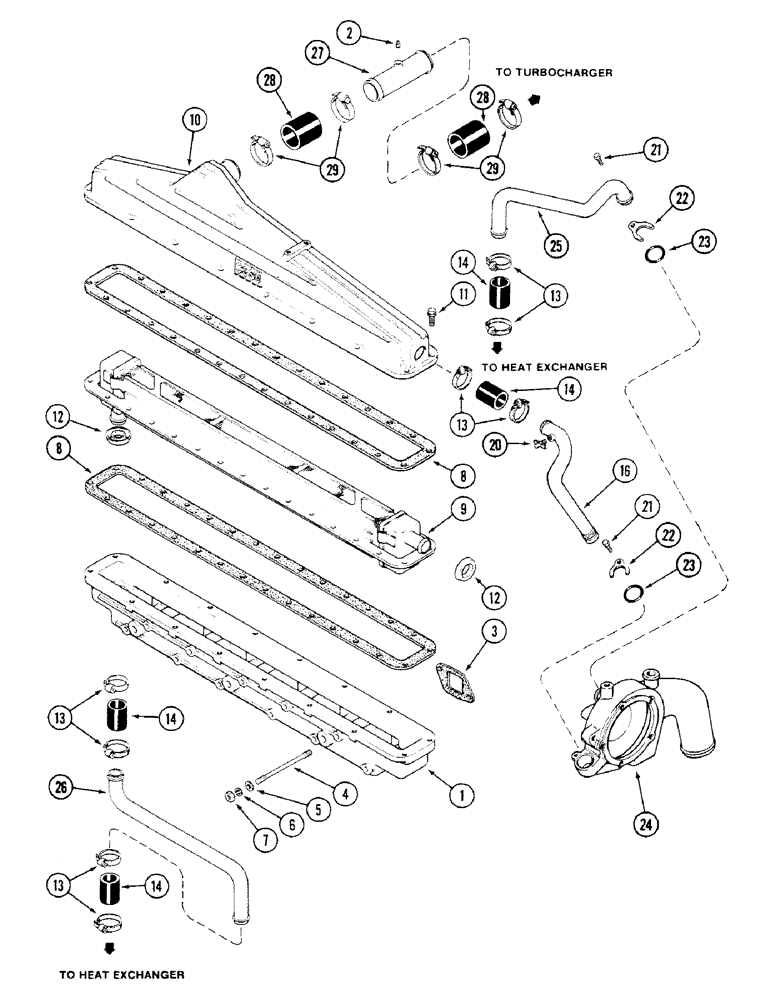

Запчасти Case IH 4694 (2-018) - INTAKE MANIFOLD AND INTERCOOLER, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A144300

TUBE

MANIFOLD - intake, lower section

1шт.

2

221-1849

PLUG

- square head, 1/8 inch PT

1шт.

3

A58662

MANIFOLD GASKET

-, Serial Range: manifold-head

6шт.

4

A144593

STUD

- manifold to head, 3/8 NC x 6-13/16 inch

11шт.

4

A59077

STUD

- manifold to head, 3/8 NC x 1-13/16 inch

1шт.

5

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

25-166

NUT,3/8"-16, G5, Hvy

- hex, 3/8 inch NC

12шт.

8

A76663

GASKET

-, Serial Range: intercooler-manifold

2шт.

9

A76661

CORE

- intercooler

1шт.

10

A150285

MANIFOLD

- intake, upper section

1шт.

11

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - hex Sems, 3/8 NC x 1-1/2 inch

16шт.

12

A76662

SEAL

- intercooler

2шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-13/16 to 1-3/4 inch

8шт.

14

A58681

HOSE

- by-pass, 1-1/4 ID x 2-1/2 inch long (32 x 64 MM)

4шт.

16

A144544

TUBE

ASSEMBLY - water pump to intercooler, Includes: Ref. 20

1шт.

20

217-81

VALVE

- drain, 1/8 inch PT

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

A76666

CLAMP

- tube

2шт.

23

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- 1-1/8 ID x 1/8 inch width (29 ID x 3 MM width)

2шт.

24

REF

INSTRUCTION

BODY - water pump (See Figure 2-010)

1шт.

25

A76664

PIPE

TUBE - heat exchanger to water pump

1шт.

26

A144426

TUBE

- intercooler to heat exchanger

1шт.

27

A144406

TUBE

- intake, Serial Range: manifold-turbocharger

1шт.

28

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

2шт.

29

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.
