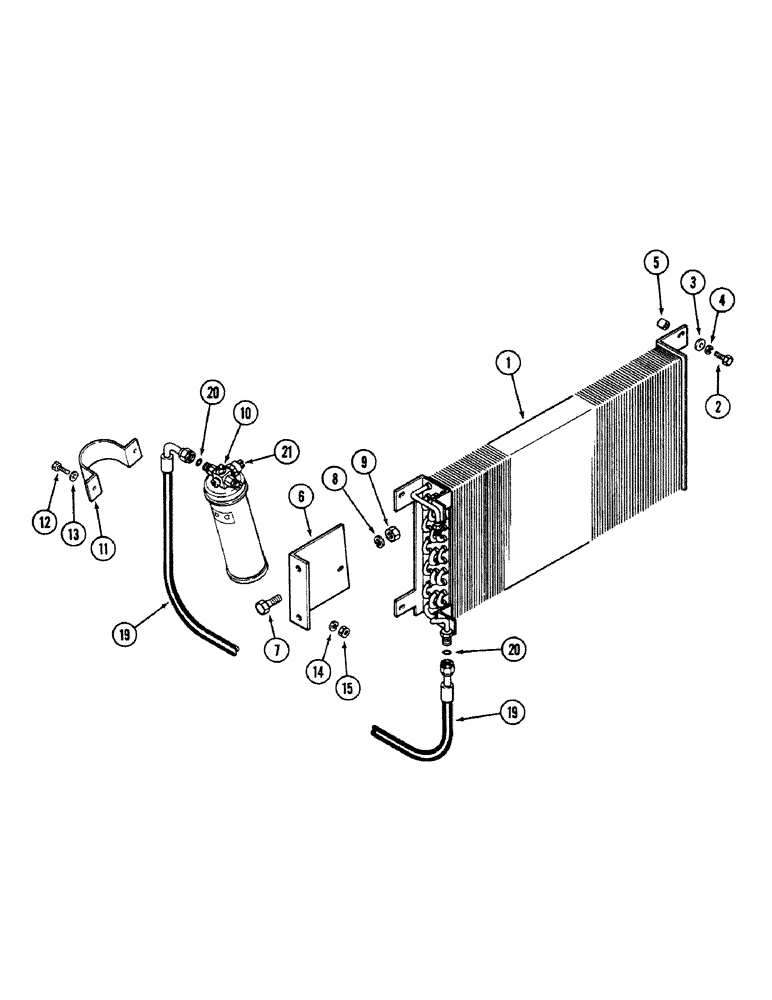

Запчасти Case IH 4694 (9-488) - AIR CONDITIONING, CONDENSER AND RECEIVER-DRIER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A152071

CONDENSER

- air conditioning

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

A37418

SPACER

- condenser mounting

4шт.

6

A152072

BRACKET

- mounting, receiver-drier

1шт.

7

113-2401

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

A76312

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

11

A76313

CLAMP

-, Serial Range: receiver-drier-bracket

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 18 x 2 MM)

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

A152068

HOSE

-, Serial Range: condenser-receiver-drier

1шт.

20

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose end

2шт.

21

A47717

SWITCH

- low pressure

1шт.
