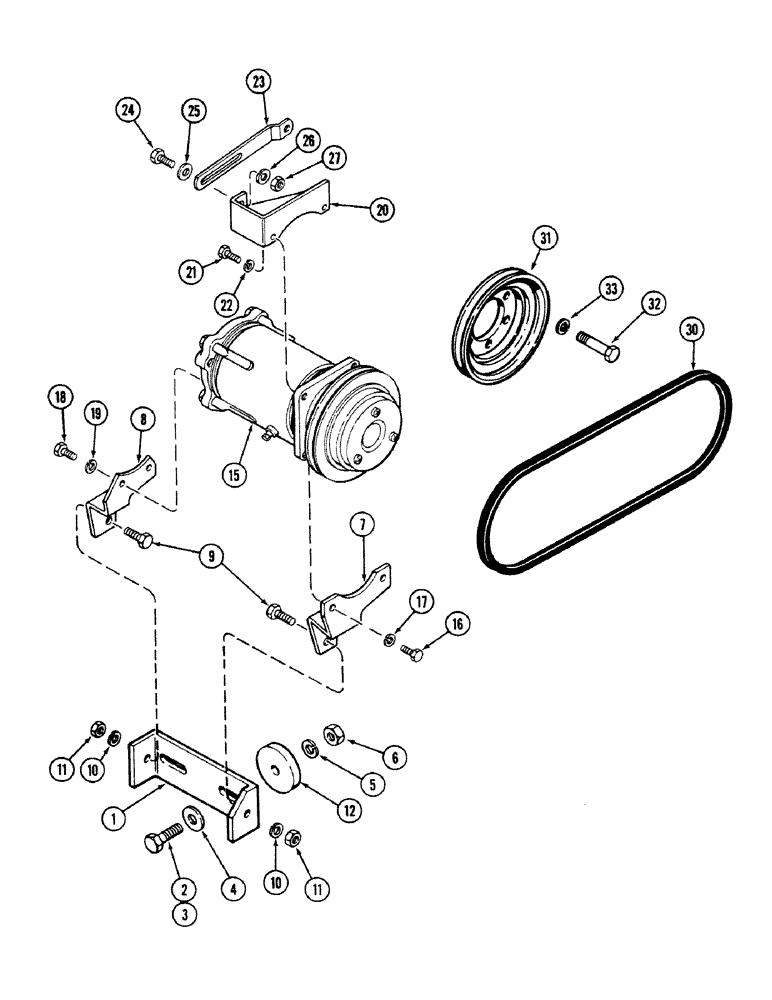

Запчасти Case IH 4694 (9-484) - AIR CONDITIONING, DELCO REMY COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A161803

BRACKET

- support, Serial Range: compressor-frame

1шт.

2

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

3

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

4

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 MM)

2шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

129-107

NUT,5/8"-11, G5

2шт.

7

A152074

BRACKET

- front support, compressor

1шт.

8

A149284

BRACKET

- rear support, compressor

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

A161813

BUSHING

SPACER - compressor bracket

1шт.

15

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air (See Figure 9-494)

1шт.

16

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 x 1.25 x 25 MM

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

A151599

BRACKET

- adjusting, Serial Range: strap-compressor

1шт.

21

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 x 1.25 x 25 MM

2шт.

22

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

23

A151632

STRAP

- adjusting, compressor belt

1шт.

24

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

1шт.

25

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch (11 x 25 x 2 MM)

3шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

30

A135265

V-BELT,0.50" W

Compressor Drive 0.50" W

1шт.

31

A161843

PULLEY

- crankshaft, compressor drive

1шт.

32

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.
