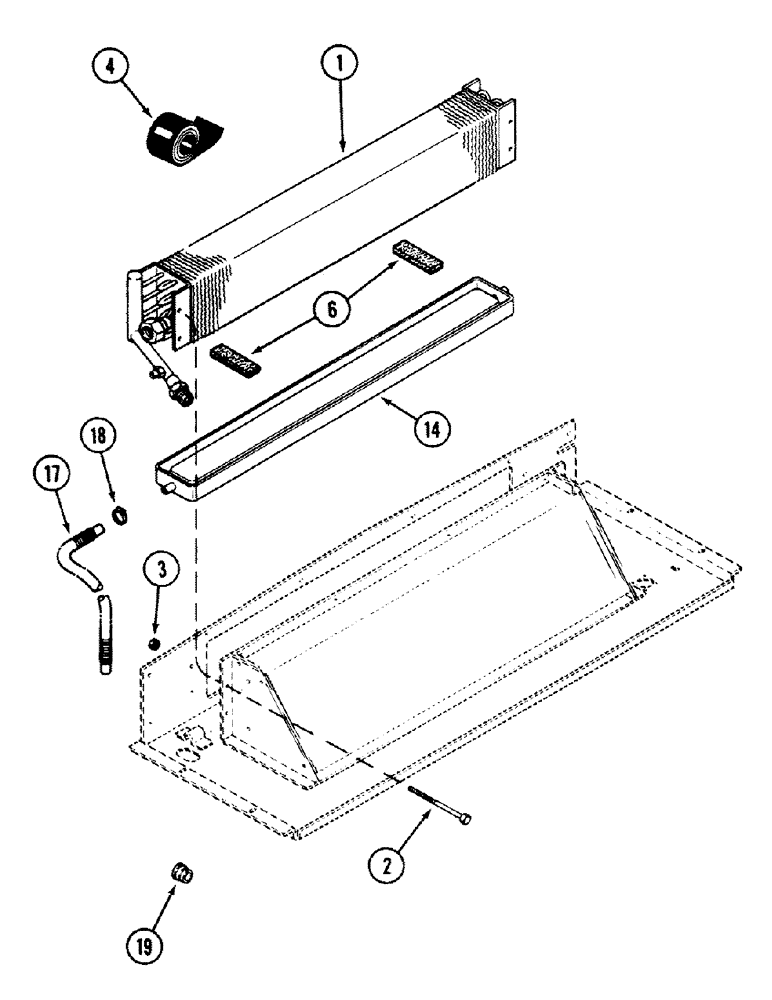

Запчасти Case IH 4694 (9-470) - CAB, AIR CONDITIONING EVAPORATOR, PRIOR TO CAB SERIAL NO. 12112500 (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator, air conditioning

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

4

345-37

TAPE

- insulator, 2-1/2 x 12 x 18 inch (64 x 305 x 3 MM)

3шт.

6

F63670

SEAL

- pan to core, 1 x 3-1/2 x 1/4 inch (25 x 89 x 6 MM)

2шт.

14

F64487

PAN

- condensation

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - drain, 90 inch (2286 MM) long (Order F64508)

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- (Cut to length) 0.43" ID x 100' Bulk

1шт.

18

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

no. 18 sae

2шт.

19

F64504

BUSHING

- snap, hose

2шт.
