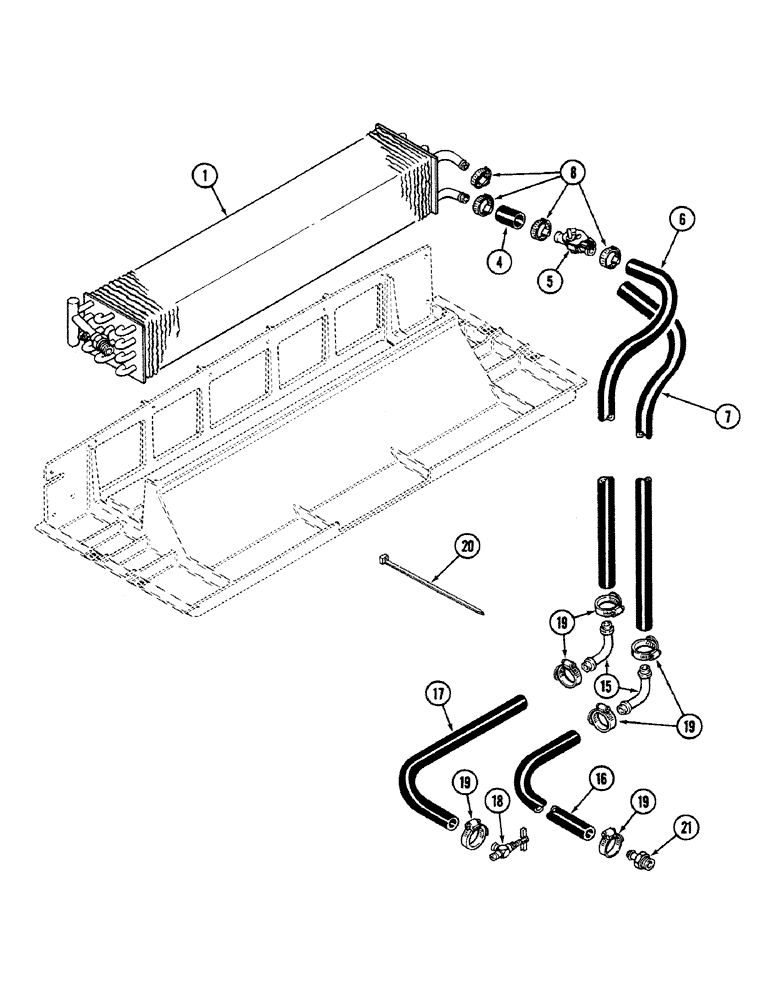

Запчасти Case IH 4694 (9-468) - CAB, HEATER GROUP, CAB SERIAL NO. 12112500 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

F66203

HEATER ASSY.

CORE - heater and air conditioner

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve, 2 inch (51 MM) long (Order A42610)

1шт.

5

F66209

VALVE

- heat control

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, 77 inch (1956 MM) long (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet, 81 inch (2057 MM) long (Order A42610)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch

4шт.

15

A60823

ELBOW

- hose

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water pump, 75 inch (1905 MM) long (Order A42610)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - from water manifold, 52 inch (1829 MM) long (Order A42610)

1шт.

18

A16764

VALVE

- shutoff

1шт.

19

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch

6шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - 5/8 hose x 3/4 inch PT

1шт.

A42610

LARGE HOSE

HOSE - 5/8 inch (16 MM) ID x 1 inch (25 MM) OD x 50 foot (15 M) roll

1шт.
