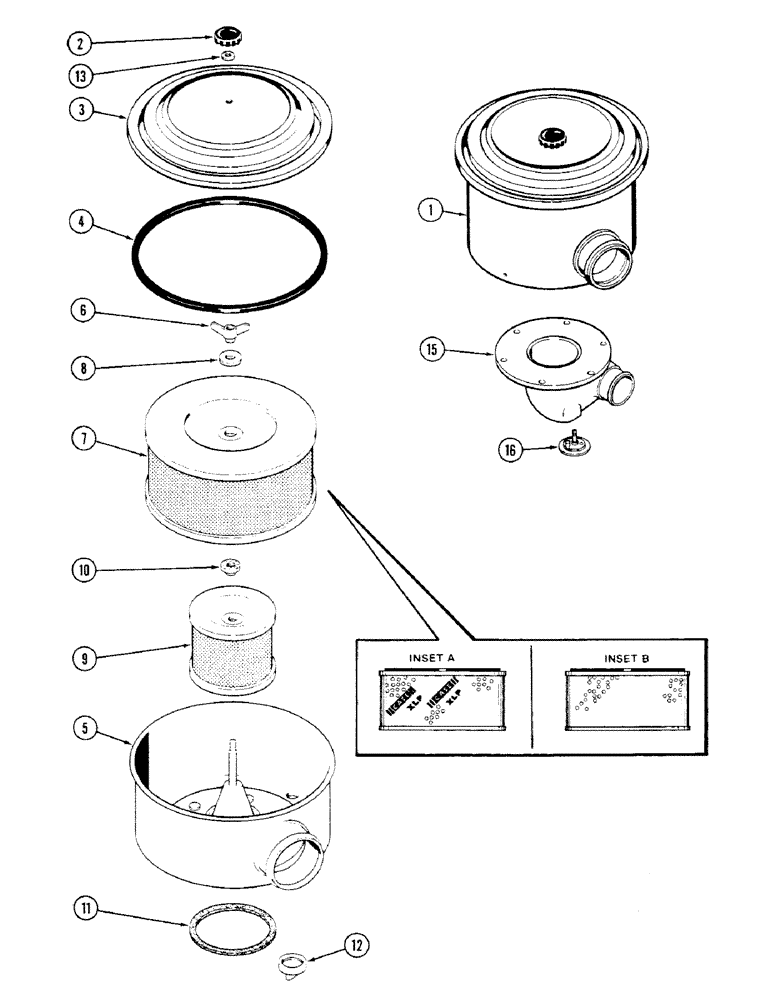

Запчасти Case IH 4694 (2-014) - AIR CLEANER ASSEMBLY, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A76855

CLEANER

AIR CLEANER ASSEMBLY - engine, Includes: Ref. 2 - 13

1шт.

2

A47390

KNOB

-, Serial Range: cover-body

1шт.

3

A44190

COVER

ASSEMBLY - element, Includes: Ref. 4

1шт.

4

A44191

GASKET

-, Serial Range: cover-body

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A76855)

1шт.

6

L35499

NUT

- wing

1шт.

Ref. 6 - Includes D37977 Nut and A44187 Washer

1шт.

7

A44804

AIR FILTER

ELEMENT ASSEMBLY - primary (See inset A)

1шт.

7

A171841

FILTER, ELEMENT

ELEMENT - primary (See inset B)

1шт.

8

A44187

WASHER

- wing nut

1шт.

9

A44805

AIR CLEANER

ELEMENT ASSEMBLY - secondary

1шт.

10

A44188

SEAL

NUT - seal

1шт.

11

A44801

GASKET

- mounting

1шт.

12

A44184

VALVE

- vacuator

1шт.

13

A161723

WASHER

- sealing

1шт.

Use adhesive 345-22 to install washer to cover.

1шт.

15

REF

INSTRUCTION

ELBOW - mounting (See Figure 2-012), air restriction switch

1шт.

16

A154782

SWITCH

- air restriction sender

1шт.

The two elbows and wire supplied with switch are not used in this application.

1шт.
