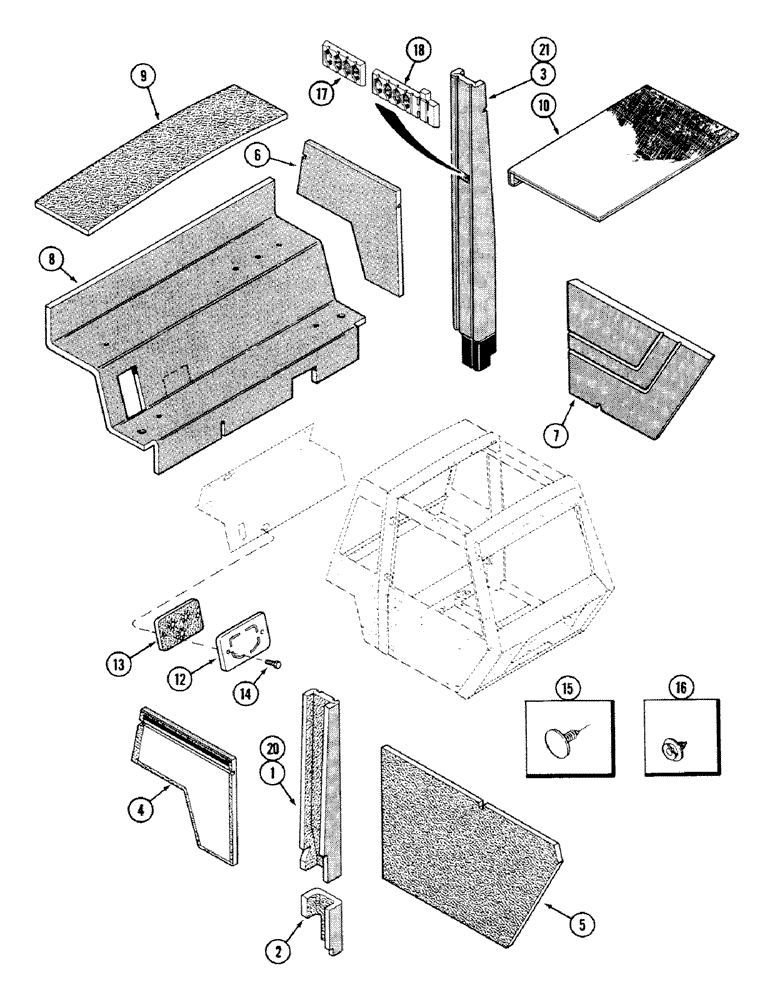

Запчасти Case IH 4694 (9-452) - CAB, ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

1

F66072

COVER

- upper, right roll bar (Includes ref 17) (Replaces F64810)

1шт.

2

F66074

COVER

- lower, right roll bar (Replaces F64812)

1шт.

3

F66073

COVER

- left roll bar (Includes ref 17) (Replaces F64811)

1шт.

4

F66264

COVER

- rear, right panel (Replaces F66070)

1шт.

5

F66076

COVER

- front, right panel (Replaces F64807)

1шт.

6

F66265

COVER

- rear, left panel (Replaces F66071)

1шт.

7

F64813

COVER ASSY

COVER - door panel

1шт.

8

F66069

COVER

- rear (Replaces F64806)

1шт.

9

F63352

FOAM

COVER - heat barrier, upper rear

1шт.

10

F66022

COVER ASSY

PAD - headliner (Replaces F64782)

1шт.

12

F64989

COVER ASSY

COVER - air/oil port

1шт.

13

F66075

SEAL

- port (Replaces F64958)

1шт.

14

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

15

A166346

FASTENER

CLIP - cover retaining

2шт.

16

R53631

ANCHOR

CLIP - cover retaining (Replaces F66031)

9шт.

17

A177741

SYMBOLS

MEDALLION - Case logo

2шт.

18

A181538

EMBLEM CASE/IH

MEDALLION - Case IH logo

2шт.

20

R52703

COVER

- upper, right roll bar (Includes ref 18)

1шт.

21

R52702

COVER

- left roll bar (Includes ref 18)

1шт.
