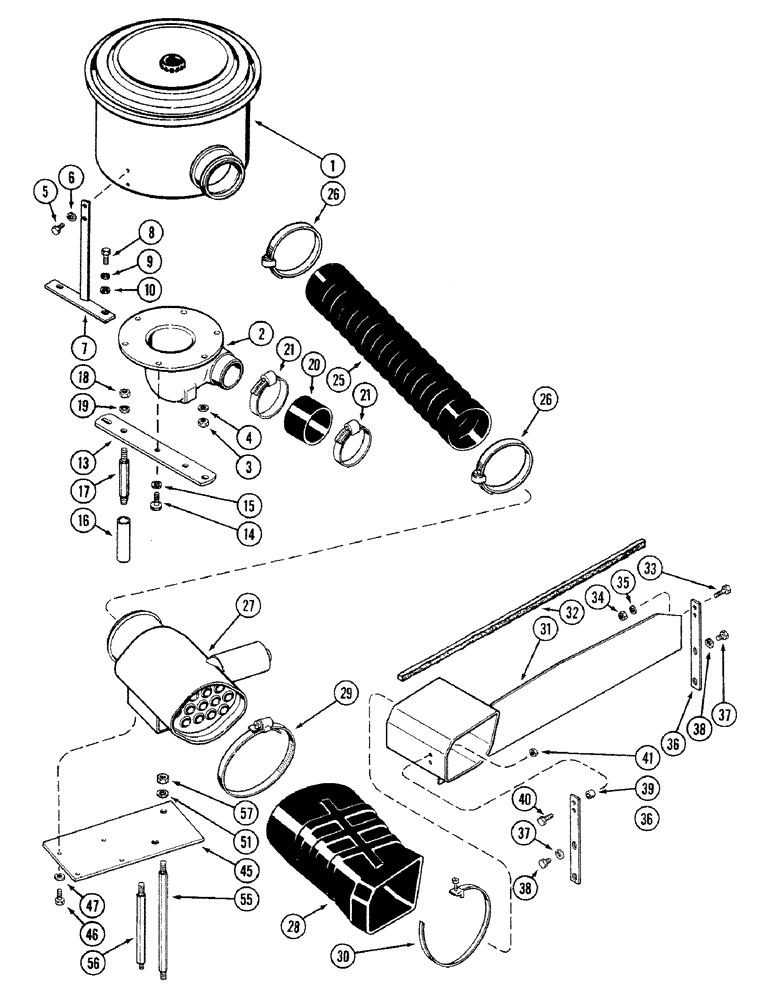

Запчасти Case IH 4694 (2-012) - AIR INDUCTION SYSTEM, 504BDTI DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY - engine (See Figure 2-014)

1шт.

2

A150787

FITTING

ELBOW - mounting, air cleaner

1шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

2шт.

6

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16 inch (9 x 18 x 2 MM)

2шт.

7

A147142

BRACE

- air cleaner

1шт.

8

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 MM)

2шт.

13

A165071

PLATE ASSY.

PLATE - elbow mounting

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

A76859

BUSHING

SPACER - support, mounting plate

2шт.

17

A76858

STUD

- support

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

A75798

HOSE

- air, Serial Range: cleaner-turbocharger

1шт.

21

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4 inch (71 x 95 MM)

2шт.

25

A152651

INTAKE AIR HOSE,139.70 mm ID x 457.20 mm

5.06" ID, 5.50" ID x 18.00" - Pre-cleaner to air cleaner

1шт.

26

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose

2шт.

27

A76869

CLEANER

PRE-CLEANER - air intake

1шт.

28

A149587

FUNNEL

- air intake

1шт.

29

214-285

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

CLAMP - funnel to pre-cleaner, 5-1/8 to 6 inch (140 x 152 MM)

1шт.

30

214-282

HOSE CLAMP,#112, 6.62" - 7.5", Type F Worm

STRAP - funnel to baffle

1шт.

31

A149406

BAFFLE

- air, radiator top

1шт.

32

A161400

SEAL

- top baffle

1шт.

33

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

A149407

PLATE

- support, baffle

2шт.

37

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

G16006

BUSHING

SPACER - air baffle, right side

2шт.

40

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

41

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

NUT - hex lock, 5/16 inch NC

2шт.

45

A152630

PLATE ASSY.

PLATE - pre-cleaner mounting

1шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 7/8 inch

4шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

51

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

55

A162433

SUPPORT

-, Serial Range: plate-block

1шт.

56

A162432

SUPPORT

- plate to water pump

1шт.

57

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
