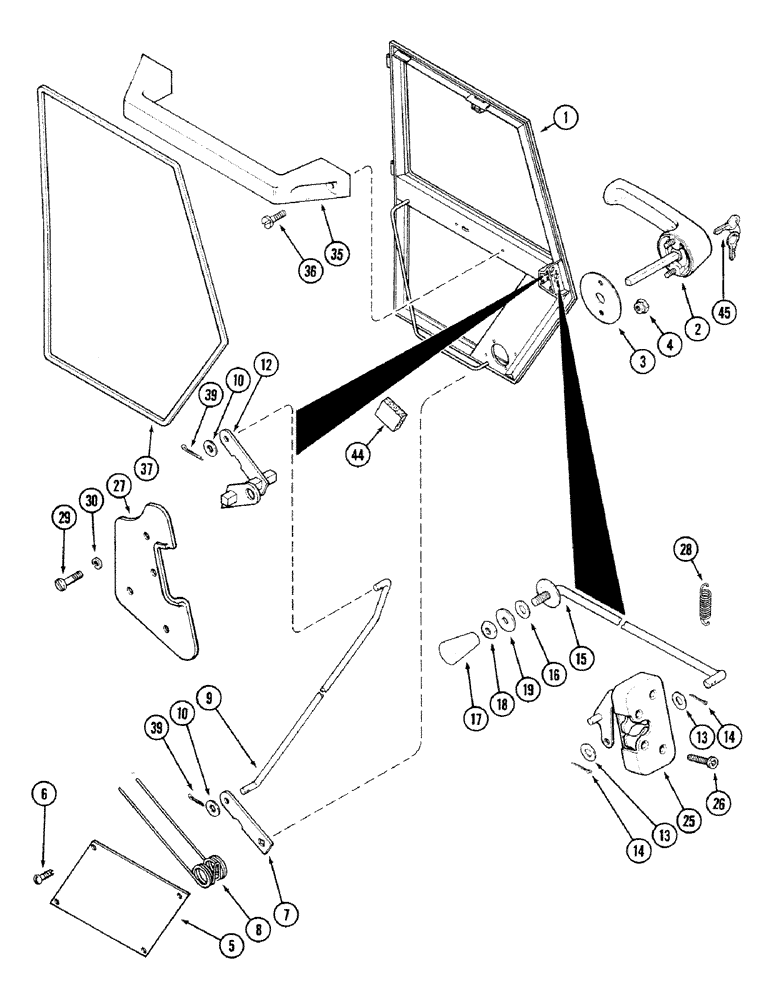

Запчасти Case IH 4694 (9-442) - CAB, DOOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

F97341

DOOR

ASSEMBLY - cab, complete, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab (Reference no. F97340)

1шт.

2

F66159

HANDLE - outer (For service order F66157)

1шт.

3

F64342

GASKET,1.6mm Thk

- handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F98276

PLATE

- access

1шт.

6

187-1081

SELF-TAP SCREW,Pan, 0.19"-16 x 1/2"

SCREW - self-tapping, no. 10 x 1/2 inch

4шт.

7

F64289

ARM

- pull rod

1шт.

8

F64431

SPRING

- pull rod

1шт.

9

F64293

ROD

- pull, door latch lower

1шт.

10

F64384

WASHER

- thrust

2шт.

12

F98228

ARM

- rotary latch

1шт.

13

F64384

WASHER

- thrust

2шт.

14

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

2шт.

15

F98226

ROD

- pull, door latch upper

1шт.

16

F64384

WASHER

- thrust

1шт.

17

F64341

KNOB

- pull

1шт.

18

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

19

F64340

WASHER

- shoulder

1шт.

25

F66155

LATCH

- rotary

1шт.

26

F45337

SCREW,1/4" - 20 x 1", Gr 5

- pan head machine

4шт.

27

F66086

COVER ASSY

COVER - latch (Replaces F98275)

1шт.

28

F45162

SPRING

- latch

1шт.

29

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- Phillips pan head, 1/4 NC x 1/2 inch

4шт.

30

193-117

WASHER,Ext-Int Tooth, 1/4"

- internal external Shakeproof lock, 1/4 inch (Replaces 193-73)

4шт.

35

F64547

HANDLE

- door pull

1шт.

36

182-536

SCREW

- Phillips pan head, 1/4 NC x 3/4 inch

2шт.

37

R53628

SEAL

- weather, 182 inch (4 620 MM) long (Replaces F64881)

1шт.

39

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

44

F66192

PAD - door

1шт.

45

A77313

SET OF 2 KEYS

KEYS - door lock, set of 2 (Used for starting also)

1шт.
