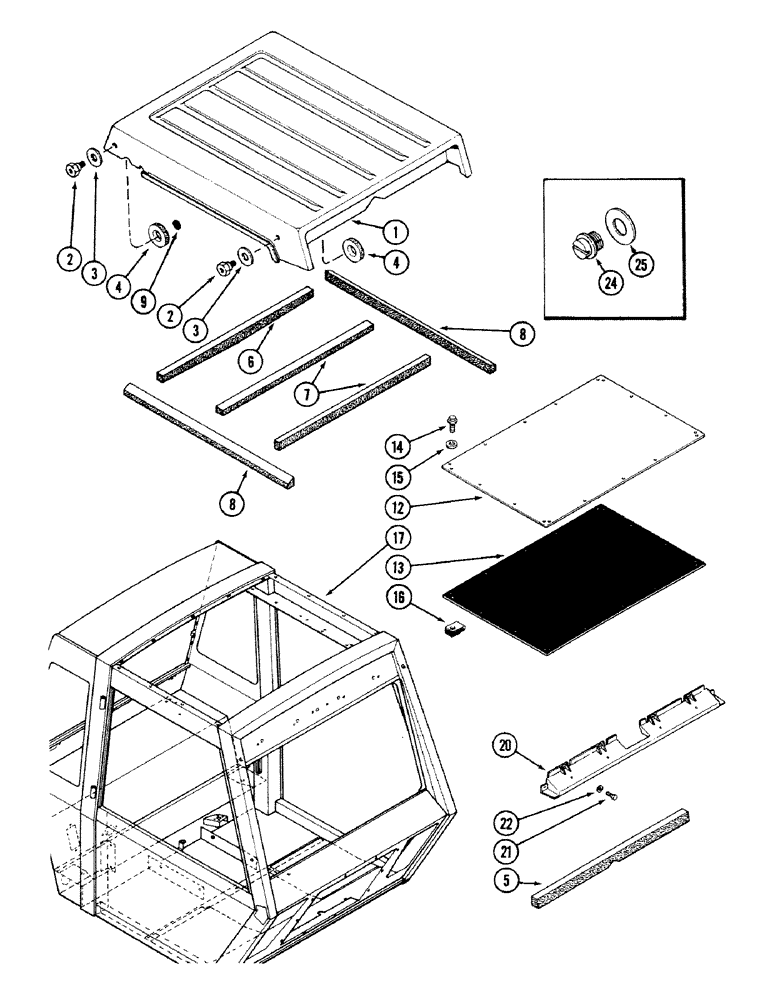

Запчасти Case IH 4694 (9-440) - CAB, ROOF CAP, ROOF AND FRAME (09) - CHASSIS/ATTACHMENTS

F98353

CAB

ASSEMBLY - with heater, air conditioning and radio speakers (Replaces F98270) (Machinery item)

1шт.

F98355

CAB ASSEMBLY - with heater, air conditioning and radio speakers (Europe only) (Machinery item)

1шт.

1

A177245

ROOF

CAP - roof, cab (Replaces A165581) (White)

1шт.

1

A181470

CAP

- roof (Red)

1шт.

2

A163030

BOLT

- cab roof cap and lifting

4шт.

3

A163031

WASHER

- mounting, roof cap

4шт.

4

A185690

WASHER,32.5mm ID x 63.5mm OD x 9.5mm Thk

- foam, cap mounting (Replaces A166399)

4шт.

5

A166496

FOAM

- roof cap, front

1шт.

6

A166493

FOAM

- roof cap, rear

1шт.

7

A166494

FOAM

- roof cap, center (Order D71360 and, Serial Range: cut-length)

2шт.

8

A166495

FOAM

- roof cap, side

2шт.

9

A177335

WASHER

- roof cap rear mounting (Replaces A167690)

2шт.

12

F64316

ROOF

- cab (Replaces F64974)

1шт.

13

F64781

SEAL

- roof

1шт.

14

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- hex washer head, 1/4 NC x 3/4 inch

18шт.

15

F64531

SEALING WASHER

WASHER - sealing

18шт.

16

131-825

NUT,Tinn, U, 1/4"-20

- speed, 1/4 inch

18шт.

17

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - cab

1шт.

20

F66024

SUPPORT

CHANNEL - lamp support, front (Replaces F64606)

1шт.

21

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex, 1/4 NC x 1/2 inch

6шт.

22

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

24

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

25

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- lift hole plug

4шт.

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Not Shown) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

129-141

JAM NUT,Jam, 1/4"-20, G5

(Not shown) Jam, 1/4"-20, G5

2шт.
