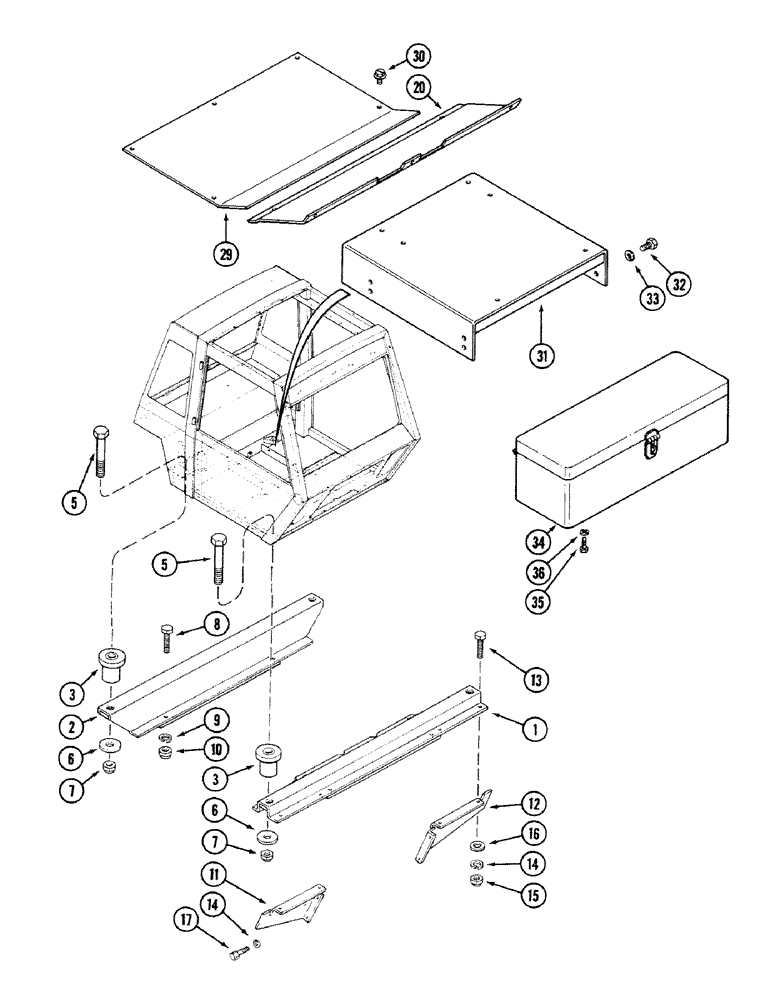

Запчасти Case IH 4694 (9-438) - CAB MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

F89768

CHANNEL

- front, cab mounting

1шт.

2

F89767

CHANNEL

- rear, cab mounting

1шт.

3

A140221

MOUNTING PARTS

MOUNT - rubber, Serial Range: cab-channel

4шт.

5

114-626

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

4шт.

6

A156428

WASHER

- mounting bolt

4шт.

7

131-60

LOCK NUT,5/8"-18

NUT - hex lock, 5/8 inch NF

4шт.

8

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

9

192-215

LOCK WASHER,5/8"

5/8"

8шт.

10

129-107

NUT,5/8"-11, G5

8шт.

11

F63573

GUSSET

- front channel to right frame

1шт.

12

F63572

GUSSET

- front channel to left frame

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

4шт.

17

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

SCREW - hex self-tapping, 3/8 x 1-1/4 inch

4шт.

20

F89769

DOOR

- lower, instrument console

1шт.

29

F63508

DOOR

- access, cab floor

1шт.

30

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - hex self-tapping, 1/4 x 5/8 inch

5шт.

31

A176398

CHANNEL

- operator seat mounting

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

D120453

TOOL

BOX - cab

1шт.

35

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

BOLT - self-tapping hex, 1/4 NC x 1 inch

2шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
