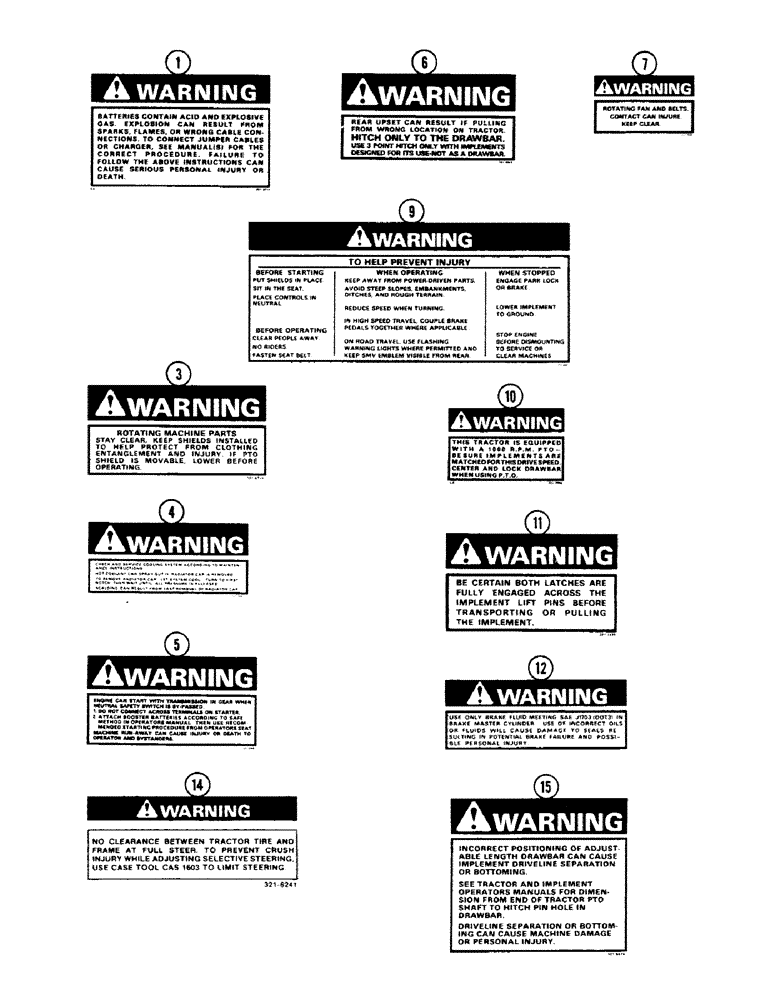

Запчасти Case IH 4694 (9-436) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS

A67597

DECAL

KIT - safety decals, Includes: Ref. 1 - 12

1шт.

For complete tractor, order (1) A67596 or A67648 tractor kit and (1) A67597 safety kit and decals for Ref. 14 and 15

1шт.

1

321-6714

DECAL

- booster cable warning and battery (On side plate)

2шт.

3

321-6715

DECAL

- rotating parts (On PTO shield)

1шт.

4

321-6672

DECAL

- radiator cap (On top of radiator) (Replaces 321-3708)

1шт.

5

321-3709

DECAL

- starting motor (On right side plate)

1шт.

6

321-3845

DECAL

- drawbar (On rockshaft)

1шт.

7

321-3596

DECAL

- fan warning (On frame extension)

2шт.

9

321-6641

DECAL

- operating procedure (Inside of door)

1шт.

10

321-3900

DECAL

- 1000 RPM PTO (On control console) (Not used this application)

1шт.

11

321-3339

DECAL

- warning, latch across implement

2шт.

12

321-6673

DECAL

- DOT 3 brake fluid only (Above master cylinder)

1шт.

14

321-6241

DECAL

- warning (Steering limit)

1шт.

15

321-6678

DECAL

- drawbar position

1шт.

A46559

DECAL

KIT - French language, Includes: Ref. 1, 3, 4, 5, 7, 10, 11, the two operating instructions decals and ROPS decal listed below and parts in Figure 9-432 and 9-434

1шт.

1

321-6719

DECAL

- booster cable warning and battery

2шт.

3

321-6647

DECAL

- rotating parts (On PTO shield)

1шт.

4

321-6701

DECAL

- radiator cap (Replaces 321-5584)

1шт.

5

321-5581

DECAL

- starting motor

1шт.

7

321-5604

DECAL

- fan warning

2шт.

10

321-5790

DECAL

- warning, implement lift

1шт.

11

321-5580

DECAL

- warning, latch across implement

1шт.

321-5619

DECAL

- operating instructions

1шт.

321-5583

DECAL

- operating instructions

1шт.

321-5735

DECAL

- ROPS

1шт.
