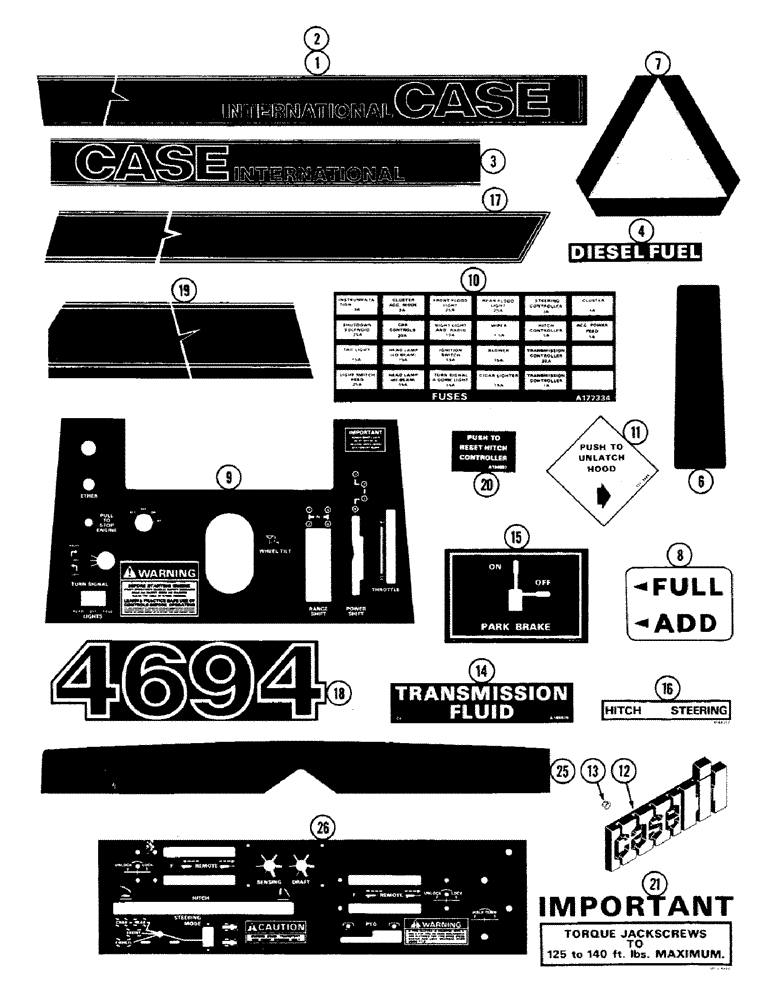

Запчасти Case IH 4694 (9-434) - TRACTOR DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A67648
DECAL
KIT - tractor, Includes: Ref. 1 - 17
1шт.
For complete tractor, order (1) A67648 tractor kit and (1) A67597 safety kit and decals for Ref. 18, Ref. 19 P/N A181510, Ref. 19 P/N A181511, Ref. 20, 25 and 26.
1шт.
1
A181518
DECAL
- right hood side
1шт.
2
A181519
DECAL
- left hood side (Right shown)
1шт.
3
F66257
DECAL
- cab rear
1шт.
4
321-2601
DECAL
- diesel fuel (Fuel tank filler)
1шт.
6
321-4142
DECAL
- hood sight
1шт.
7
321-4311
DECAL
- SMV
1шт.
8
321-2470
DECAL
- transmission oil level
1шт.
9
A176024
DECAL
- instrument panel
1шт.
10
A177334
DECAL
- fuse location (Replaces A164371)
1шт.
11
321-3985
DECAL
- hood latch unlock (Order A167284)
1шт.
12
A181900
EMBLEM
MEDALLION - front grille
1шт.
13
131-431
PUSH-ON NUT,Self, Threading, 1/4"
NUT - self-threading, 1/4 inch
2шт.
14
A169070
DECAL
- transmission fluid (On transmission fill tube)
1шт.
15
A167688
DECAL
- parking brake (On parking brake switch cover)
1шт.
16
A164212
DECAL
- hitch and steering (On console support bracket)
1шт.
17
F66255
DECAL
- cab, right
1шт.
17
F66256
DECAL
- cab, left (Right shown)
1шт.
18
A181522
DECAL
- 4694 (Side of cab)
2шт.
19
A181510
DECAL
- rear hood, right side
1шт.
19
A181511
DECAL
- rear hood, left side (Right shown)
1шт.
20
A164557
DECAL
- hitch reset (On console)
1шт.
21
321-6432
DECAL
- power adjust jackscrew (Row crop tires only)
8шт.
25
321-6446
DECAL
- cab roof, front
1шт.
26
A176079
DECAL
- operator console
1шт.
A46559
DECAL
KIT - French language, Includes: Ref. 4, Ref. 10 P/N A169080, Ref. 10 P/N A169079 and road speed decal listed below and parts in Figure 9-436
1шт.
4
321-5793
DECAL
- diesel fuel only
1шт.
10
A169080
DECAL
- fuse block location (Not used this application)
1шт.
10
A169079
DECAL
- fuse block location
1шт.
321-5536
DECAL
- road speed (Not used this application)
1шт.
Выбрано товаров: 31
