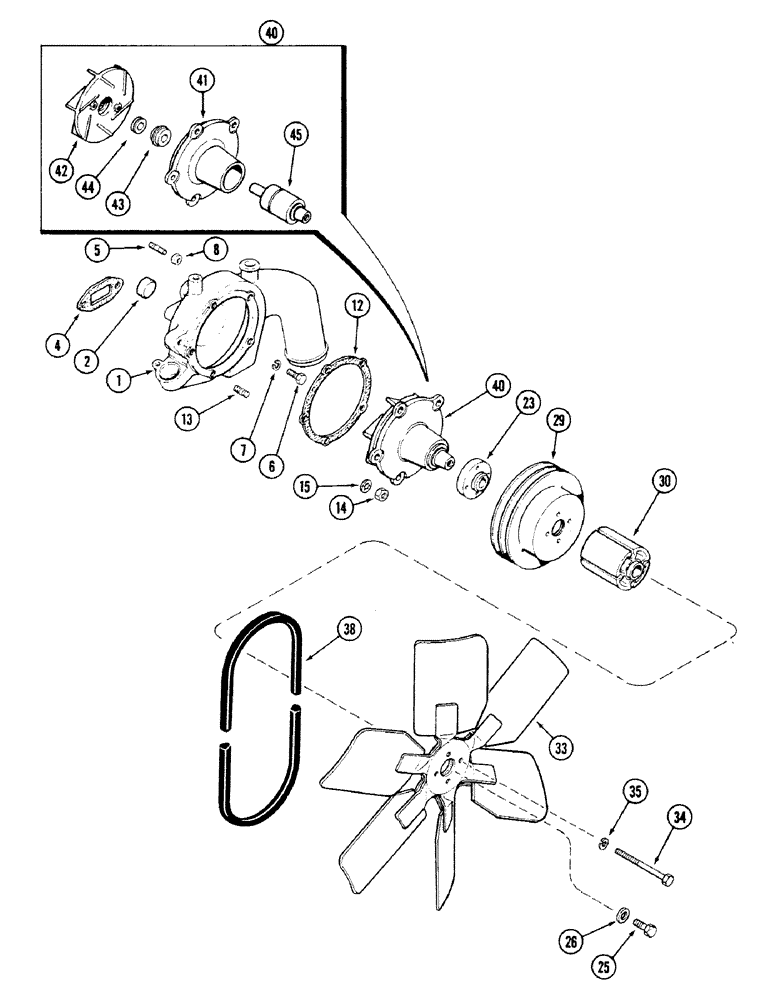

Запчасти Case IH 4694 (2-010) - WATER PUMP AND FAN, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A150683

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8 inch cup type (35 MM)

1шт.

4

A58649

GASKET

-, Serial Range: body-block

1шт.

5

A59077

STUD

- body to block, 3/8 NC x 1-13/16 inch

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

A76656

GASKET

-, Serial Range: pump-body

1шт.

13

A166044

STUD

- pump to body, 3/8 inch NC x 1-7/16 inch

5шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

23

A146221

HUB

- fan and pulley

1шт.

25

114-400

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - hub retainer

1шт.

29

A146982

PULLEY

- belt

1шт.

30

A164647

BUSHING

SPACER - fan, 2-27/32 inch (72 MM)

1шт.

33

A149359

FAN

- 24 inch (610 MM)

1шт.

34

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

35

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

4шт.

38

A76745

SET OF BELTS,0.69" W

SET OF 2 BELTS , Drive, Fan and pump 0.69" W

1шт.

40

A157146

PUMP

ASSEMBLY - water (New), Includes: Ref. 41 - 45

1шт.

40

A48370

REMAN-WATER PUMP

PUMP KIT - water, remanufactured, Includes: gasket Ref. 12

1шт.

40

A48337

CORE-WATER PUMP

RETURN NUMBER, use this part no. to return water pump core for credit

1шт.

41

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

42

A166282

IMPELLER

- water (Replaces A155273)

1шт.

43

A166281

SEAL

- pump shaft (Replaces A142499)

1шт.

44

A166280

SEAT

- impeller (Replaces A34000)

1шт.

45

A156995

BEARING

SHAFT ASSEMBLY - bearing

1шт.
