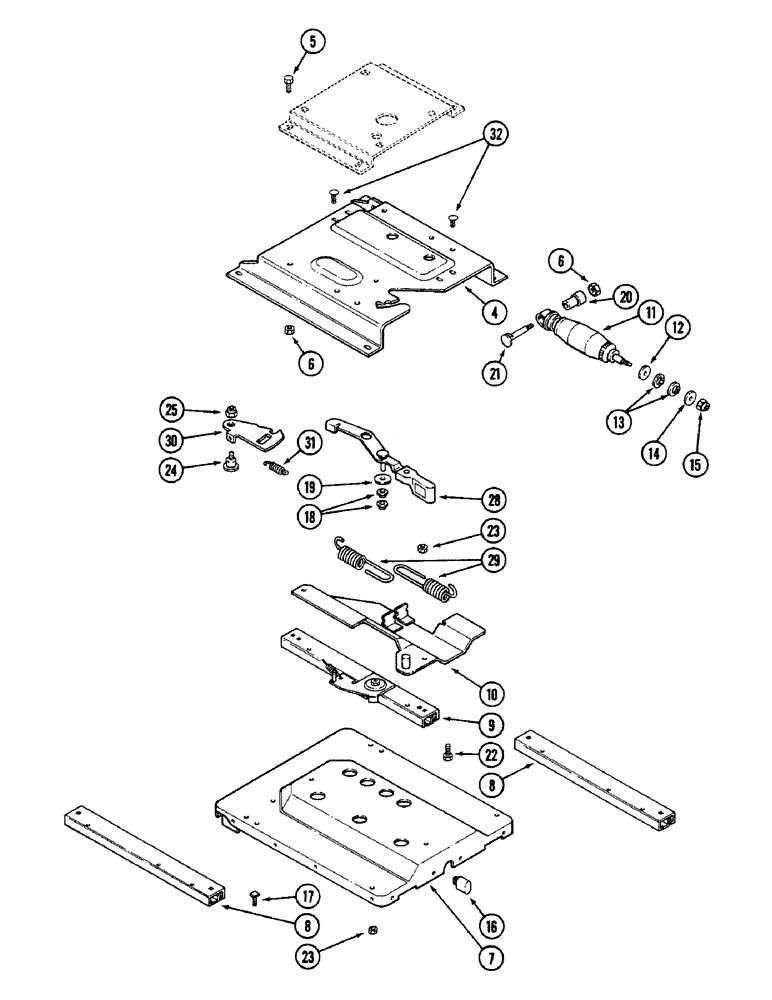

Запчасти Case IH 4694 (9-414) - SEAT, AIR/OIL SUSPENSION, PRIOR TO P.I.N. 8866221 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A176376
SEAT
ASSEMBLY - air/oil suspension (Order A181029), Includes: seat isolator assembly, seat swivel assembly and Ref. 4 - 32 in this figure and parts in Figures 9-412, 9-416 and 9-418
1шт.
A49525
SEAT
ISOLATOR ASSEMBLY - seat, Includes: seat swivel assembly and Ref. 4 - 32 in this figure and parts in Figure 9-416
1шт.
REF
INSTRUCTION
SWIVEL ASSEMBLY - seat (See Figure 9-416)
1шт.
4
A49544
PLATE
- top
1шт.
6
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
4шт.
7
A49539
CLIP
HOUSING - isolator upper
1шт.
8
A49540
SLIDE
ASSEMBLY - isolator
2шт.
9
A49541
RAIL
SLIDE ASSEMBLY - isolator, with latch
1шт.
10
A49542
BRACKET
- shock absorber mounting
1шт.
11
A49543
SHOCK ABSORBER
- isolator
1шт.
12
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)
1шт.
A49619
KIT
- shock absorber mounting, Includes: Ref. 13 - 15
1шт.
13
A49679
BUSHING
- shock absorber
2шт.
14
A49678
WASHER
- special
1шт.
15
131-1169
LOCK NUT,5/16"-24, GA
NUT, LOCK, 5/16"-24, GA
1шт.
16
A49549
INSULATOR BLOCK
BUMPER - isolator
2шт.
17
117-101
BOLT
BOLT - square head, 5/16 NC x 3/4 inch
6шт.
18
131-413
PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"
NUT - push, 1/4 x 17/32 inch
2шт.
19
195-2014
WASHER,.281" x 1 1/8" x .065"
- flat, 9/32 x 1-1/8 x 1/16 inch (7 x 29 x 2 MM)
1шт.
20
A45501
BUSHING,0.504" ID x 0.87" OD x 1.417"
BEARING - shock absorber
1шт.
21
A45056
STEP BOLT
BOLT - shock
1шт.
22
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
6шт.
23
131-1169
LOCK NUT,5/16"-24, GA
NUT, LOCK, 5/16"-24, GA
12шт.
24
A49546
BOLT
- shoulder
1шт.
25
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
1шт.
28
A49545
LEVER
ASSEMBLY - isolator
1шт.
29
A48356
SPRING
- shock absorber
2шт.
30
A49547
LATCH
- isolator
1шт.
31
A49548
SPRING
- latch
1шт.
32
A49622
CLIP
- retaining
2шт.
Выбрано товаров: 31
