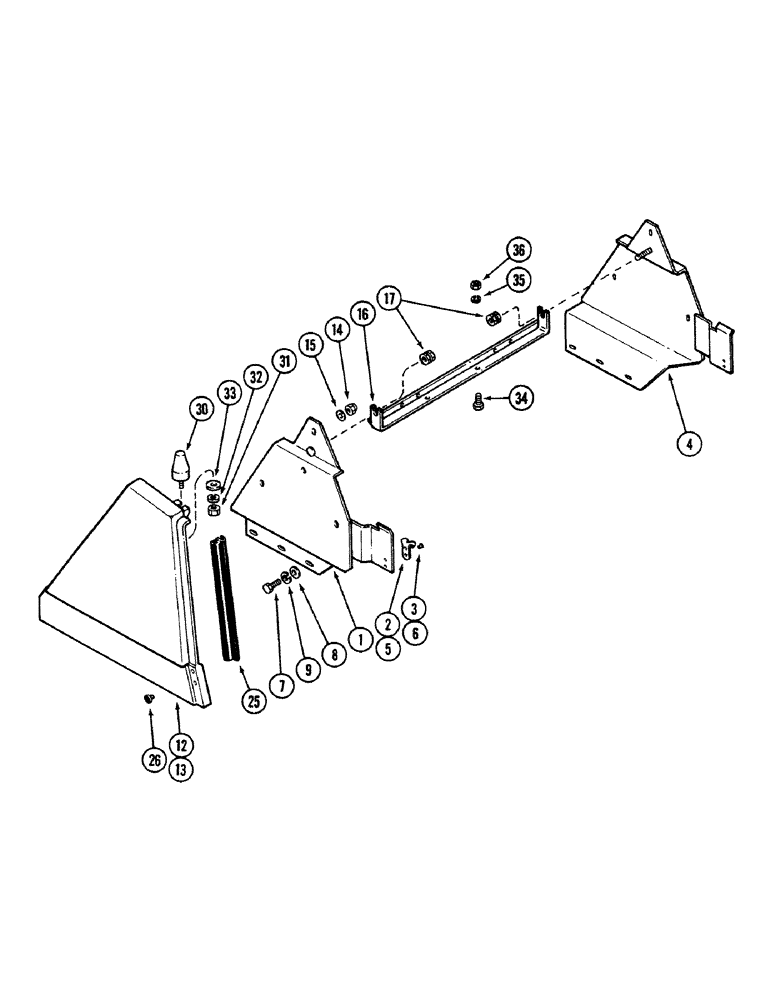

Запчасти Case IH 4694 (9-410) - REAR SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A165067

BRACKET

ASSEMBLY - right support, rear hood, Includes: Ref. 2 and 3

1шт.

2

L47158

BRACKET

KEEPER - hood latch

1шт.

3

151-554

RIVET

- button head, 3/16 x 1/4 inch

2шт.

4

A165069

BRACKET

ASSEMBLY - left support, rear hood, Includes: Ref. 5

1шт.

5

L47158

BRACKET

KEEPER - hood latch

1шт.

6

151-554

RIVET

- button head, 3/16 x 1/4 inch

2шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

8

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

6шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

A167273

PANEL ASSY.

PANEL ASSEMBLY - right rear (Includes decal) (White)

1шт.

12

A181483

PANEL ASSY.

PANEL ASSEMBLY - right rear (Includes decal) (Red)

1шт.

13

A167274

PANEL

ASSEMBLY - left rear (Right shown) (Includes decal) (White)

1шт.

13

A181485

PANEL

ASSEMBLY - left rear (Includes decal) (Red)

1шт.

14

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex lock, 1/4 inch NC

6шт.

15

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

6шт.

16

A177465

BAR

ROD - hood adjustment (Replaces A169535)

1шт.

17

A147282

SPOOL

- rear hood adjusting

2шт.

25

A162798

CLUTCH FACING

SEAL - side panel (Order A151423 and, Serial Range: cut-length)

2шт.

26

A161780

BUMPER

- rubber, hood

4шт.

30

A149863

GUIDE

- top hood

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

33

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

34

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
