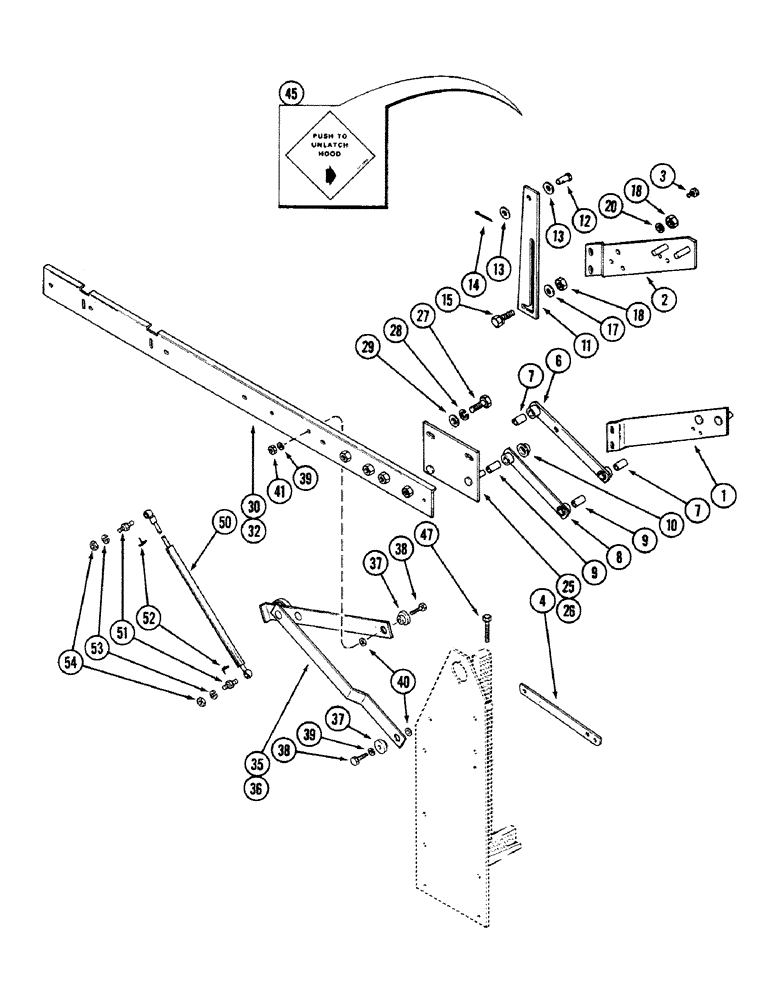

Запчасти Case IH 4694 (9-406) - HOOD HINGE AND LIFT (09) - CHASSIS/ATTACHMENTS

1

A151383

PLATE

- hinge pivot, right

1шт.

2

A165247

PLATE ASSY.

PLATE - hinge pivot, left

1шт.

3

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

4

A161131

BAR

- hinge pivot

2шт.

6

A166856

LINK

ARM ASSEMBLY - lower, hinge pivot, Includes: Ref. 7

2шт.

7

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

8

A166854

ARM

ASSEMBLY - upper, hinge pivot, Includes: Ref. 9

2шт.

9

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

10

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

8шт.

11

A185917

HINGE

PLATE - lock, hinge arm (Replaces A177919)

1шт.

12

A12470

PIN

- lock, Serial Range: plate-arm

1шт.

13

A30752

WASHER

- hinge

2шт.

15

A61946

STEP BOLT

BOLT - hex shoulder, 7/16 NF x 1-3/4 inch

1шт.

17

195-105

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch (13 x 32 x 2 MM)

1шт.

18

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

25

A162890

PLATE

- pivot, right hood support

1шт.

26

A162891

PLATE

- pivot, left hood support (Right shown)

1шт.

27

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

29

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (14 x 27 x 2 mm)

4шт.

30

A180004

BRACKET

ANGLE - support, hood lift right (Replaces A161609)

1шт.

32

A180002

BRACKET

ANGLE - support, hood lift left (Right shown) (Replaces A161608)

1шт.

35

A160164

ARM

- right, hood lift assist, Serial Range: -8866987

1шт.

36

A160163

ARM

- left, hood lift assist (Right shown), Serial Range: -8866987

1шт.

37

A160153

BUSHING

SPACER - assist arm

4шт.

38

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

4шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

45

321-3985

DECAL

- lock plate (Order A167284)

1шт.

47

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

50

A181953

SPRING

- gas, lift, Start Serial: 8866987

2шт.

51

A181954

STUD

- ball

4шт.

52

A150707

CLIP

- safety

4шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

54

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

PIN - cotter, 1/8 x 1-1/8 inch

1шт.
