Запчасти Case IH 4694 (2-008) - WATER FILTER, 504BDTI DIESEL ENGINE (02) - ENGINE

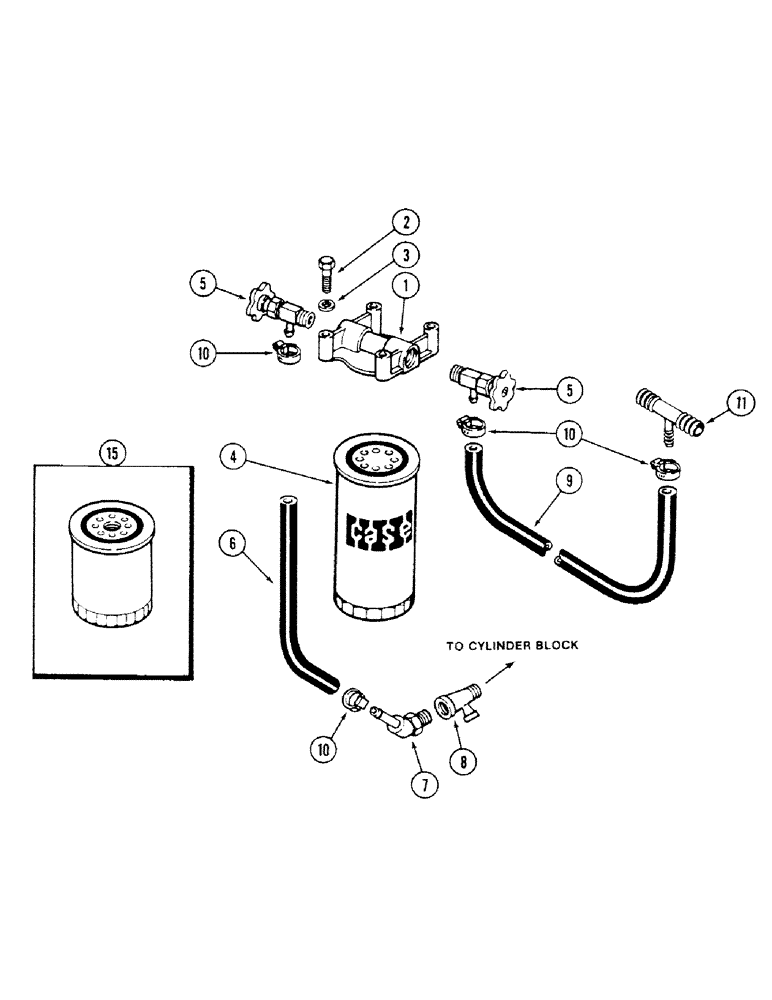

Схема запчастей Case IH 4694 - (2-008) - WATER FILTER, 504BDTI DIESEL ENGINE (02) - ENGINE
5
15
10
1
5
10
11
4
2
9
7
6
3
8
10

Артикул

Название

Примечание

Количество

1

A152821

HEAD

- filter and valve

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

A152819

FILTER

CARTRIDGE water filter, charged, 7-1/2 inch (191 MM) high

1шт.

5

A154051

COCK, DRAIN

VALVE - water

2шт.

6

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Block

1шт.

7

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 45 degree, 1/4 PT x 3/8 inch hose

1шт.

8

221-1691

TEE,Street, 1/4" NPT

CONNECTOR - branch, 1/4 x 1/4 x 1/4 inch (In block)

1шт.

9

A161557

HOSE,9.60 mm ID x 558.80 mm, SAE 20R3

- Valve to heater hose 9.60 mm ID x 558.80 mm, SAE 20R3

2шт.

10

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 x 1-1/6 inch (14 x 27 MM)

6шт.

11

A154014

CONNECTOR, ELEC

CONNECTOR - branch, heater hose split

1шт.

15

A151931

FILTER

CARTRIDGE - water filter, service, 4-13/64 inch (107 MM) high

1шт.

Выбрано товаров: 12
