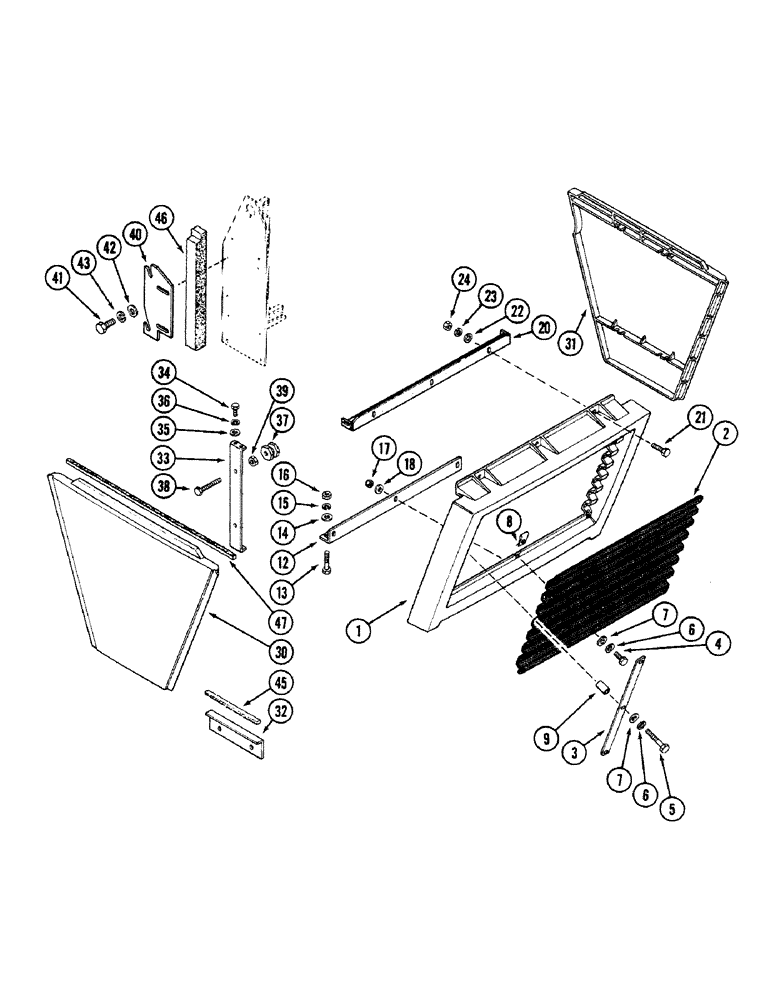

Запчасти Case IH 4694 (9-404) - LOWER GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A181474

GRILLE

- lower (Red)

1шт.

1

A152808

GUARD

GRILLE - lower (White)

1шт.

2

A162564

SCREEN

- lower grille

1шт.

3

A149603

RETAINER

- screen

2шт.

4

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

5

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

6

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

7

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 MM)

8шт.

8

131-603

NUT,Tinn, U, 1/4"-20

- Tinnerman U type, 1/4 inch

8шт.

9

L10264

BUSHING

SPACER - center bolt

2шт.

12

A152958

BRACKET

ANGLE - mounting, lower grille bottom

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

14

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex lock, 1/4 inch NC

3шт.

18

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

3шт.

20

A161285

BRACKET

ANGLE - mounting, lower grille top

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

22

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

6шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

30

A152809

PANEL

- right front (White)

1шт.

30

A181476

PANEL

- right front (Red)

1шт.

31

A152810

PANEL

- left front (White)

1шт.

31

A181475

PANEL

- left front (Red)

1шт.

32

A151389

SUPPORT

- side panel

2шт.

33

A151388

STRAP

-, Serial Range: panel-bracket

2шт.

34

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

35

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/58 x 5/64 inch (7 x 16 x 2 mm)

1шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

37

A147282

SPOOL

- lock, Serial Range: panel-bracket

4шт.

38

A160078

BOLT

- adjuster

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

40

A177918

PLATE

BRACKET - panel mounting

2шт.

41

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

42

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)

4шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

45

A149861

SEAL

-, Serial Range: panel-support

2шт.

46

A149924

SEAL

FOAM - seal, panel to radiator support

2шт.

47

A160519

SEAL

- wing panel, upper

2шт.
