(9-400) - INSTRUMENT PANEL AND COWL

Запчасти Case IH 4694 (9-400) - INSTRUMENT PANEL AND COWL (09) - CHASSIS/ATTACHMENTS

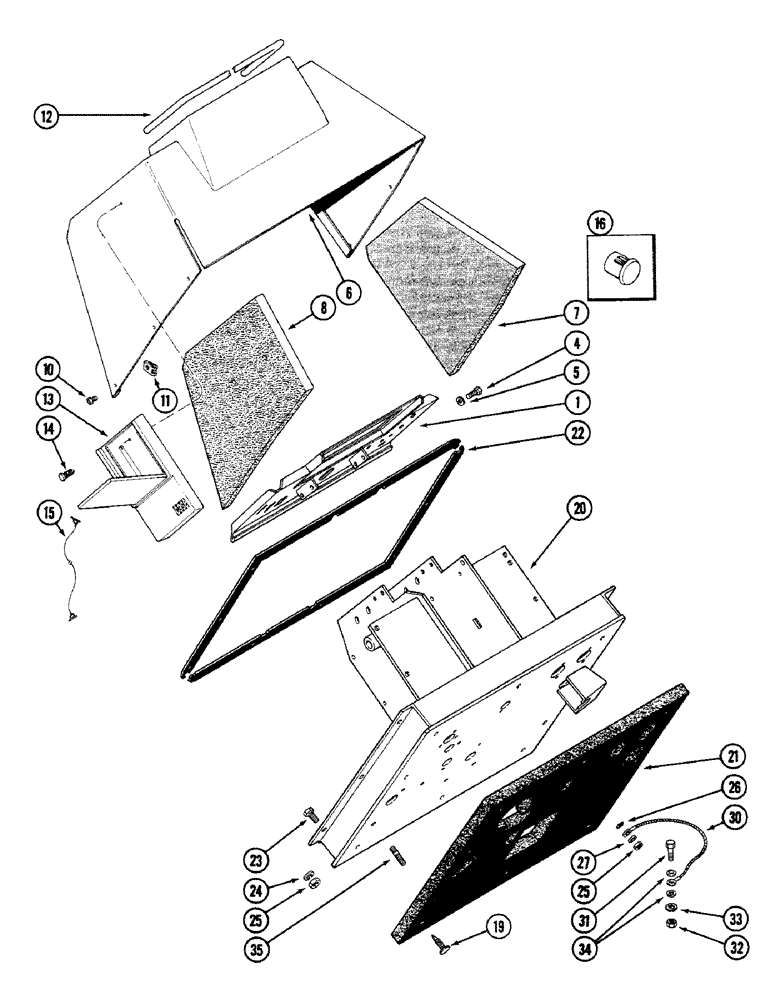

Схема запчастей Case IH 4694 - (9-400) - INSTRUMENT PANEL AND COWL (09) - CHASSIS/ATTACHMENTS
19
4
13
10
24
26
22
32
1
21
33
20
14
5
31
25
34
15
6
25
16
23
27
12
35
30
11
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A176135

PANEL ASSY.

PANEL - instrument

1шт.

4

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

A164214

COWL

- instrument cluster

1шт.

7

A149411

INSULATOR

PAD - left cowl

1шт.

8

A149412

FOAM

PAD - right cowl

1шт.

10

A75390

STUD

- fastener

6шт.

11

A36042

CLIP

RECEPTACLE - fastener

6шт.

12

A76234

ROPE

CORD - cowl support

1шт.

13

A177376

BOX

- operators manual (Replaces A169003)

1шт.

14

A162364

FASTENER

FASTNER -, Serial Range: box-cowl

3шт.

15

A141917

ROPE

CORD - manual retaining

3шт.

16

353-400

PLUG,Dome, .250" hole, Nylon

1шт.

19

A166346

FASTENER

- pad, panel support & firewall

8шт.

20

A180702

SUPPORT

ASSEMBLY - instrument and firewall (Replaces A166759), panel

1шт.

21

A180668

PAD

- firewall (Replaces A164739), panel support

1шт.

22

A162986

GASKET

- support, panel, firewall

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Panel support & firewall Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

23

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Panel support & firewall Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Panel support & firewall 3/8"

12шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Panel support & firewall 3/8"-16, G5

12шт.

26

193-72

LOCK WASHER

- internal external lock, 3/8 inch, panel support & firewall

2шт.

27

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch (11 x 25 x 2 MM), panel support & firewall

12шт.

30

A64704

STRAP

- ground, panel support & firewall

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2 NC x 1-3/8 inch, panel support & firewall

1шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

Panel support & firewall 1/2"-13, G5

1шт.

33

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Panel support & firewall Ext-Int Tooth, 1/2"

1шт.

34

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 MM), panel support & firewall

2шт.

35

A59077

STUD

- support to cab, panel, firewall

2шт.
