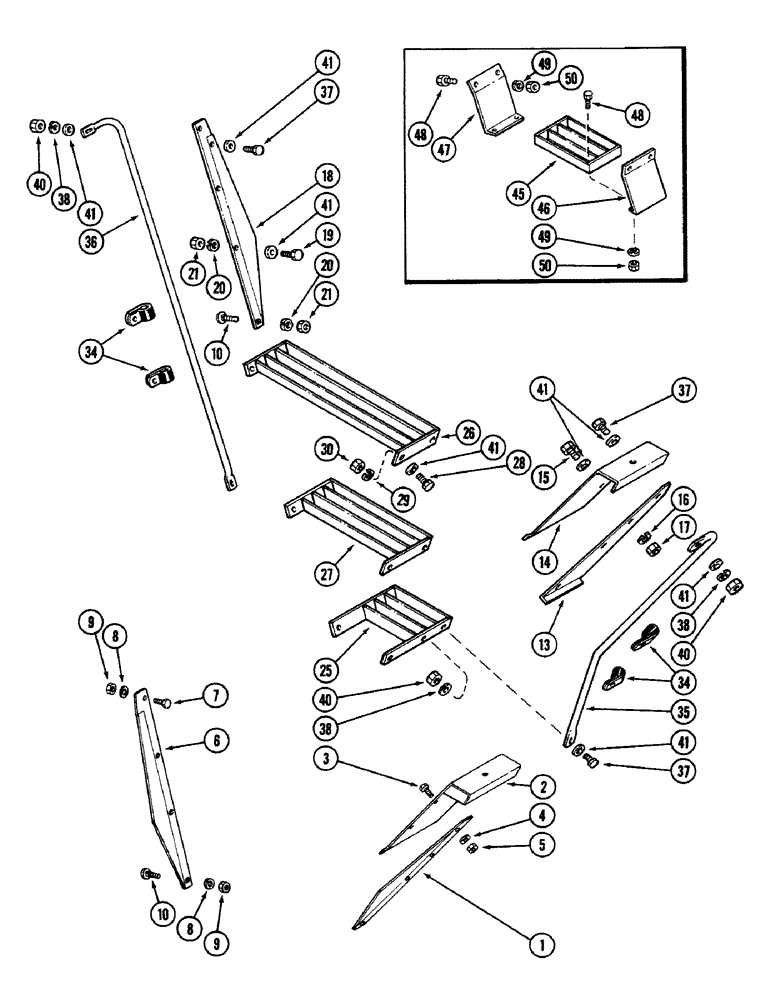

Запчасти Case IH 4694 (9-398) - WHEEL GUARDS, STEPS AND HAND RAILS (09) - CHASSIS/ATTACHMENTS

1

A149678

GUARD

wheel, right front

1шт.

2

A149675

GUARD

- wheel, right front

1шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

A140560

GUARD

- wheel, right rear

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

13

A167065

GUARD ASSY.

GUARD - wheel, left front

1шт.

14

A149676

GUARD

- wheel, left front

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

18

A149650

GUARD

- wheel, left rear

1шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

25

A165094

STEP

- lower

1шт.

26

A165098

STEP

- upper

1шт.

27

A165096

STEP

- middle

1шт.

28

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

34

A177114

CLAMP

- hand rail (Replaces A165100)

4шт.

35

A176403

RAIL

- hand, left front

1шт.

36

A176402

RAIL

- hand, left rear

1шт.

37

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

41

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

8шт.

A169751

STEP ATTACHMENT - extension, auxiliary (Machinery item), Includes: Ref. 45 - 50

1шт.

45

A165091

STEP

- auxiliary

1шт.

46

A165033

SIDE ASSY.

SIDE PLATE - step, front

1шт.

47

A165032

SIDE ASSY.

SIDE PLATE - step, rear

1шт.

48

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.
