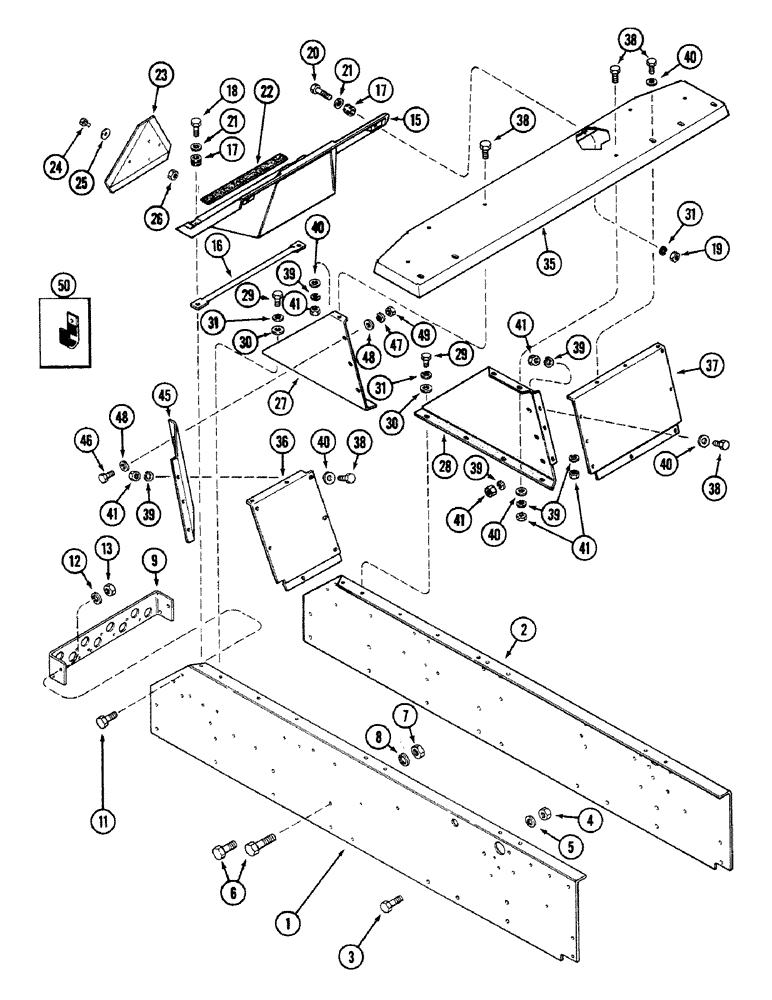

Запчасти Case IH 4694 (9-396) - PLATFORM AND SIDE PLATES (09) - CHASSIS/ATTACHMENTS

1

A166844

PLATE ASSY.

PLATE - side, right

1шт.

2

A161942

PLATE

- side, left

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

6

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

8шт.

7

129-107

NUT,5/8"-11, G5

16шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A165737

PLATE ASSY.

PLATE - mounting, hydraulic coupling

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

12

92-8

LOCK WASHER,1/2"

1шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

15

A149659

RIGID PLATFORM

PLATFORM - rear (White)

1шт.

15

A181742

COVER

PLATFORM - rear (Red)

1шт.

16

A160390

SUPPORT

- cross, rear cover

1шт.

17

A162019

GROMMET

- rear cover mounting

4шт.

18

113-2275

BOLT - hex lock, 3/8 NC x 1-1/4 inch

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

113-2276

BOLT (SPREADER),Locking, 3/8" - 16 x 1-1/2", Gr 8

BOLT - hex lock, 3/8 NC x 1-1/2 inch

4шт.

21

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

4шт.

22

A181872

STRIP

TREAD - non slip, rear platform (Replaces A143553)

6шт.

23

A163604

DECAL

EMBLEM - SMV (Order D123347)

1шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

25

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

2шт.

26

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/2 inch NC

2шт.

27

A149450

SHEET

- right side, rear platform

1шт.

28

A149449

SHEET

- left, rear platform

1шт.

29

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

30

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

6шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

35

NLS

NO LONGER SERVICED

- rear

1шт.

36

A149646

GUARD

- right rear

1шт.

37

A149647

GUARD

- left rear

1шт.

38

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

5шт.

38

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

40

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

6шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

9шт.

45

A149645

GUARD

- console cables (Right rear corner)

1шт.

46

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

48

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

12шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

50

A149624

CLIP

- retaining

3шт.
