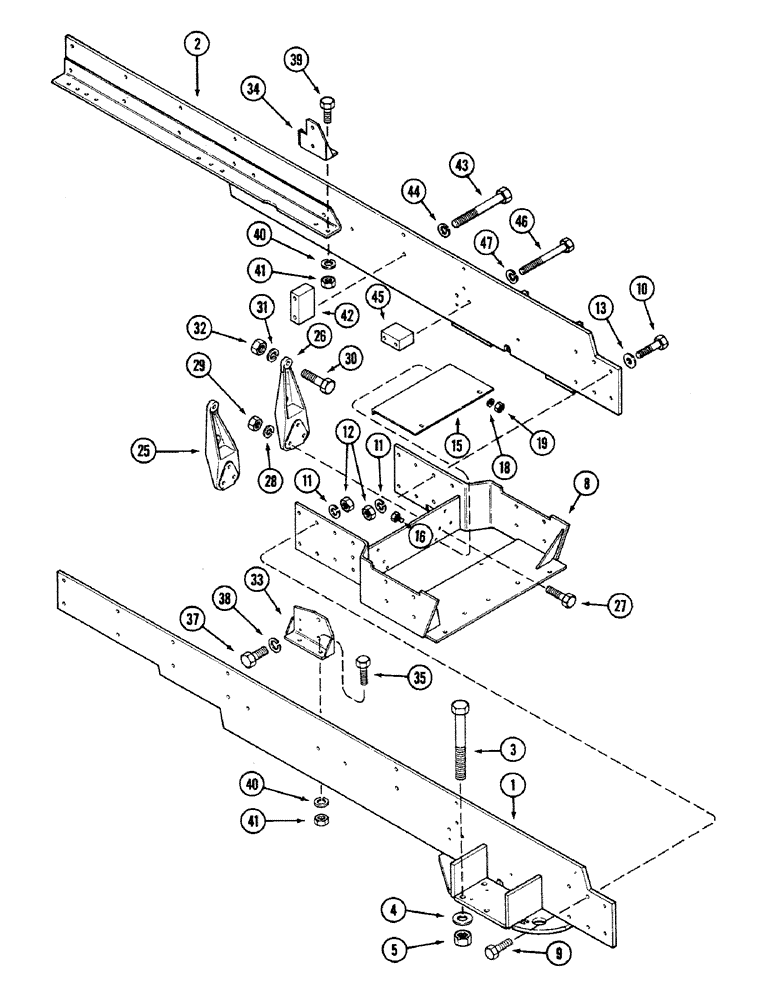

Запчасти Case IH 4694 (9-394) - CHASSIS / ENGINE AND TRANSMISSION SUPPORT (09) - CHASSIS/ATTACHMENTS

1

A161850

FRAME

- right chassis

1шт.

2

A161851

FRAME

- left chassis

1шт.

3

28-14120

BOLT,Hex, 7/8" - 14 x 7-1/2", Gr 8

- hex, 7/8 NF x 7-1/2 inch (Grade 8)

8шт.

4

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- mounting bolt

8шт.

5

131-187

LOCK NUT,7/8"-14, GB

NUT - hex lock, 7/8 inch NF

8шт.

8

A169788

FRAME

- extension, chassis

1шт.

9

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

9шт.

10

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

3шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

12

25-1010

NUT,5/8"-11, G5

12шт.

13

195-41

WASHER,5/8"

(17 x 33 x 3 mm) 5/8"

2шт.

15

A151158

BAFFLE

- extension

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

A150552

MOUNTING PARTS

MOUNT - right, engine, engine and transmission support

1шт.

26

A150551

MOUNTING PARTS

MOUNT - left, engine, engine and transmission support

1шт.

27

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, engine and transmission support

6шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Engine & transmission supports 5/8"

6шт.

29

129-107

NUT,5/8"-11, G5

Engine and transmission support 5/8"-11, G5

6шт.

30

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch NC, engine and transmission support

4шт.

31

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Engine & transmission support 3/4"

4шт.

32

129-108

NUT,3/4"-10, G5

Engine and transmission support 3/4"-10, G5

4шт.

33

A144728

BRACKET

- transmission support, right rear, engine and transmission support

1шт.

34

A151330

BRACKET

- transmission support, left rear, engine and transmission support

1шт.

35

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Engine and transmission support Hex, 5/8"-11 x 2", G5

2шт.

37

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Engine and transmission support Hex, 3/4"-10 x 2", G5

4шт.

38

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Engine & transmission support 3/4"

5шт.

38

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Engine and transmission support Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

39

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

Engine and transmission support Hex, 5/8"-11 x 1 3/4", G5

2шт.

40

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Engine & transmission supports 5/8"

4шт.

41

129-107

NUT,5/8"-11, G5

Engine and transmission support 5/8"-11, G5

4шт.

42

A75684

SPACER

- center, transmission mounting, engine and transmission support

2шт.

43

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

Engine and transmission support Hex, 3/4"-10 x 6", G5

4шт.

44

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Engine & transmission support 3/4"

4шт.

45

A75685

SPACER

- front, transmission mounting, engine and transmission support

2шт.

46

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

Engine and transmission support Hex, 5/8"-11 x 5 1/2", G5

4шт.

47

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Engine & transmission supports 5/8"

4шт.
