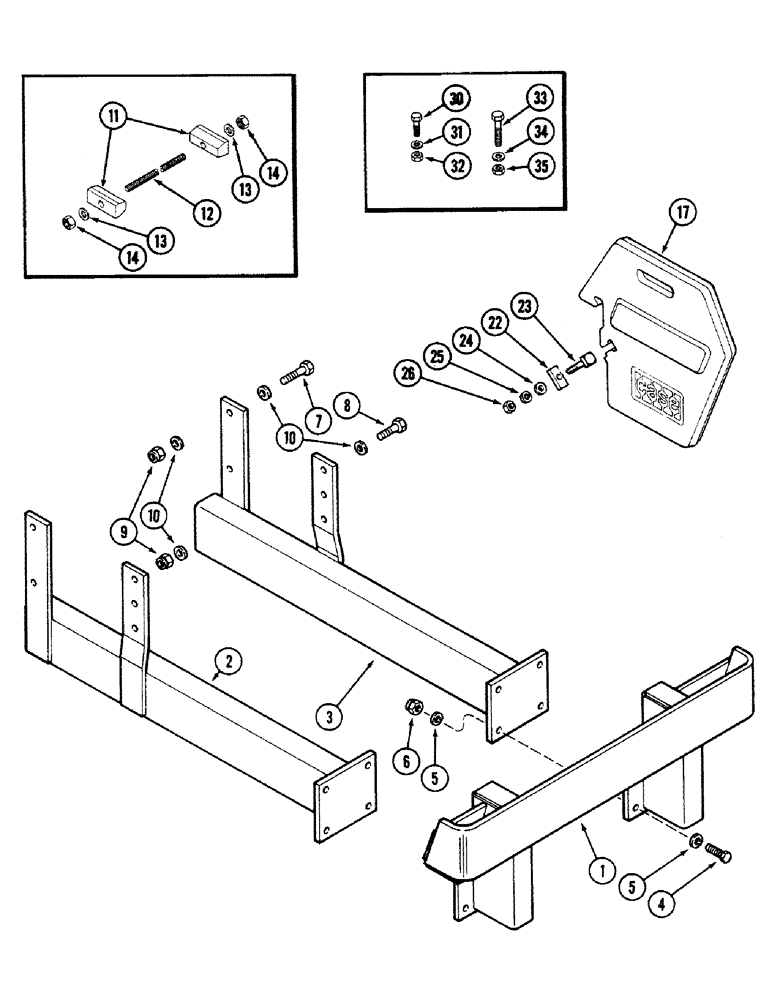

Запчасти Case IH 4694 (9-392) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS

A169752

WEIGHT ATTACHMENT - front end (Machinery item), Includes: Ref. 1 - 14

1шт.

1

A169529

FUNNEL

FRAME - front, weight supporting

1шт.

2

A169650

FUNNEL

FRAME - right, weight supporting

1шт.

3

A169651

FUNNEL

FRAME - left, weight supporting

1шт.

4

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

5

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/15 x 7/64 inch (17 x 33 x 3 MM)

16шт.

6

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8-11 inch

8шт.

7

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch grade 8

5шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch grade 8

5шт.

9

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8-11 inch

10шт.

10

196-20

WASHER,41/64" x 1.047" x .134", HDN

- hardened flat, 41/64 x 1-3/64 x 1/8 (16 x 27 x 3 MM)

20шт.

11

A181354

BLOCK

- holddown

2шт.

12

A181350

ROD

- threaded, 5/8 NC

1шт.

13

195-541

WASHER,5/8", SAE

- 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 MM)

2шт.

14

129-107

NUT,5/8"-11, G5

2шт.

17

A169111

WEIGHT

ASSEMBLY - front, 100 lb (45 kg) (Machinery item)

1шт.

A177102

KIT

- hardware (Machinery item), Includes: Ref. 22 - 26

1шт.

22

A145919

CLAMP

- weight

1шт.

23

A169139

SQUARE BOLT

- square head, 1/2 NC x 3-1/4 inch

1шт.

24

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

1шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

A177037

KIT - hardware (Machinery item), Includes: Ref. 30 - 35

1шт.

30

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

31

195-541

WASHER,5/8", SAE

- 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 MM)

8шт.

32

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

8шт.

33

28-1292

BOLT - hex, 3/4 NF x 5-3/4 inch, grade 8

4шт.

33

28-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 8

- hex, 3/4 NF x 3-1/4 inch, grade 8

4шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

16шт.

35

131-186

LOCK NUT,3/4"-16, GB

NUT - hex lock, 3/4 inch NF

8шт.
