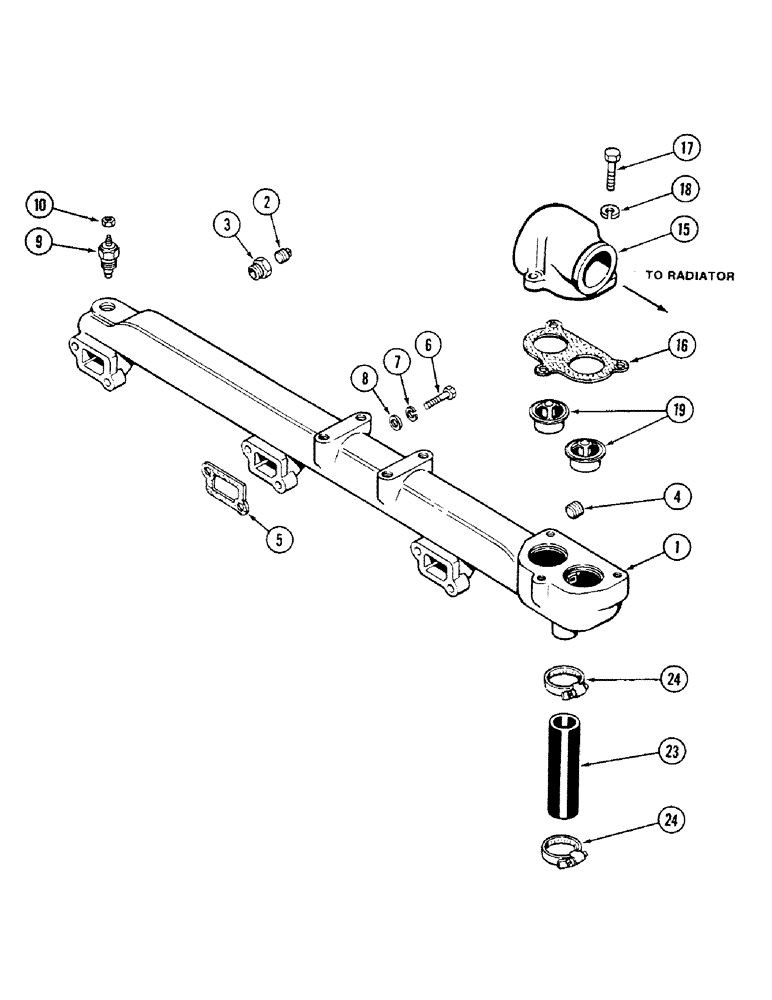

Запчасти Case IH 4694 (2-006) - WATER MANIFOLD AND THERMOSTAT, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A152742

MANIFOLD

- water

1шт.

2

221-1843

PLUG

- square head, 3/8 inch PT

1шт.

3

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

1шт.

5

A166147

GASKET

-, Serial Range: manifold-head

3шт.

6

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

6шт.

9

A176566

TRANSMITTER

SENDER - water temperature (Replaces D65446)

1шт.

10

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex lock, no. 10-32

1шт.

15

A60689

HOUSING

- thermostat

1шт.

16

A166148

GASKET

-, Serial Range: housing-manifold

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

A57641

THERMOSTAT

- water, 180 degrees F (82 degrees C)

2шт.

23

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump, 1-1/4 inch ID x 5-5/16 inch (32 x 135 MM)

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 x 44 MM)

2шт.
