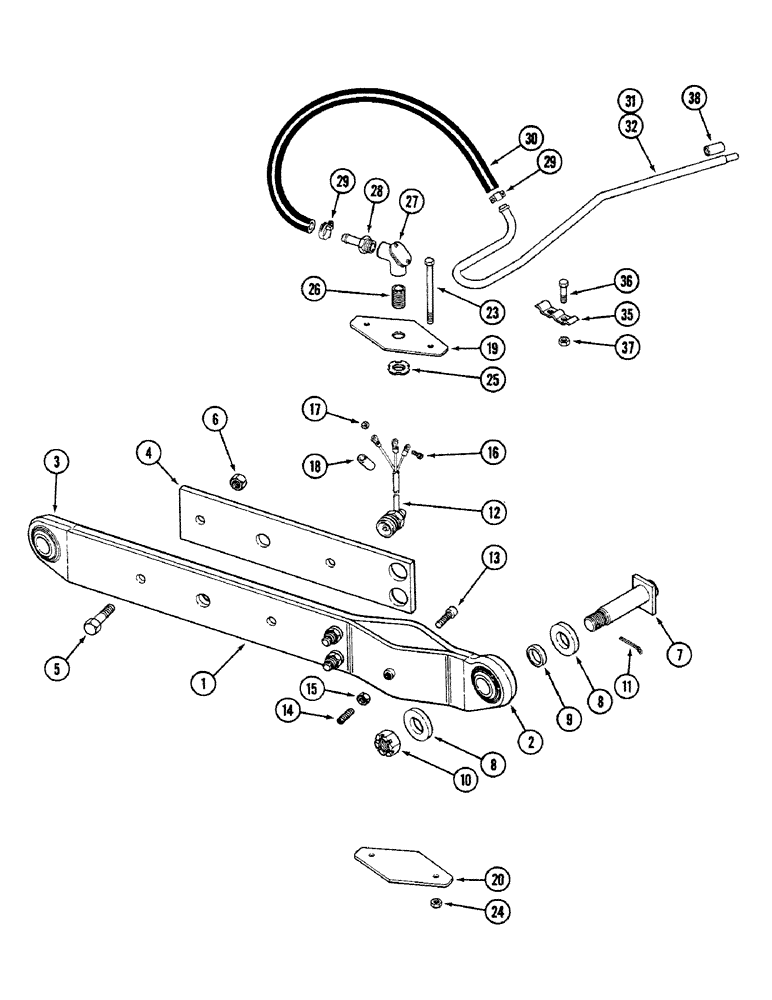

Запчасти Case IH 4694 (9-382) - THREE POINT HITCH, DRAFT ARMS AND SENSOR (09) - CHASSIS/ATTACHMENTS

1

A169509

ARM

ASSEMBLY - draft, right, Includes: Ref. 2 and 3

1шт.

1

A169510

ARM

ASSEMBLY - draft, left (Right shown), Includes: Ref. 2 and 3

1шт.

2

A169507

BALL JOINT

BALL ASSEMBLY - draft arm pivot

1шт.

3

A167163

ARM, LIFT

BALL ASSEMBLY - draft arm pivot

1шт.

4

A165274

PLATE ASSY.

PLATE - stiffener, draft arm

2шт.

5

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch

4шт.

6

131-197

LOCK NUT,3/4"-10, GC

NUT - hex lock, 3/4 inch NC

2шт.

7

A163274

PIN

- draft arm pivot

2шт.

8

A163292

WASHER

- pivot pin

4шт.

9

L10007

WASHER

BUSHING - pivot, draft arm

2шт.

10

25-1320

SLOTTED NUT,1 1/4"-12, G5

2шт.

11

132-185

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

12

A165422

TRANSMITTER

SENSOR ASSEMBLY - draft arm

2шт.

13

165-131

HEX SOC SCREW,Self-Lkg, 5/16" - 18 x 1"

SCREW - hex socket head, 5/16-18 x 1-1/4 inch

2шт.

14

A166780

SET SCREW,3/8" - 24 x 47.80"

- special set

2шт.

15

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8 inch NC

2шт.

16

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- brass pan head machine, no. 6-32 x 3/16 inch

6шт.

17

A167755

NUT

- hex, no. 6-32

6шт.

18

A163365

SLEEVE

- shrink, wire connectors

6шт.

19

A162509

COVER

- top, sensor

2шт.

20

A162561

COVER

- bottom, sensor

2шт.

23

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

4шт.

24

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

25

223-202

NUT

- lock, conduit 3/4 inch

2шт.

26

221-1211

FITTING

NIPPLE - pipe, 3/4 PT x 1-3/8 inch

2шт.

27

A149530

FITTING

ELBOW ASSEMBLY - conduit

2шт.

28

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - straight, 3/4 NF thread x 5/8 inch hose end

2шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 inch (30 MM) to 1-3/4 inch (45 MM)

4шт.

30

A136406

HOSE,0.64" ID x 29.00", SAE 20R3

- Sensor harness (Order A42610 and cut to length) 0.64" ID x 29.00", SAE 20R3

2шт.

31

A162507

CONDUIT

- sensor harness, right

1шт.

32

A162506

CONDUIT

- sensor harness, left (Right shown)

1шт.

35

A60862

CLAMP

- conduit

2шт.

36

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

37

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

NUT - hex lock, 5/16 inch NC

4шт.

38

A161254

SLEEVE

- shrink, conduit (Set of 3)

1шт.
