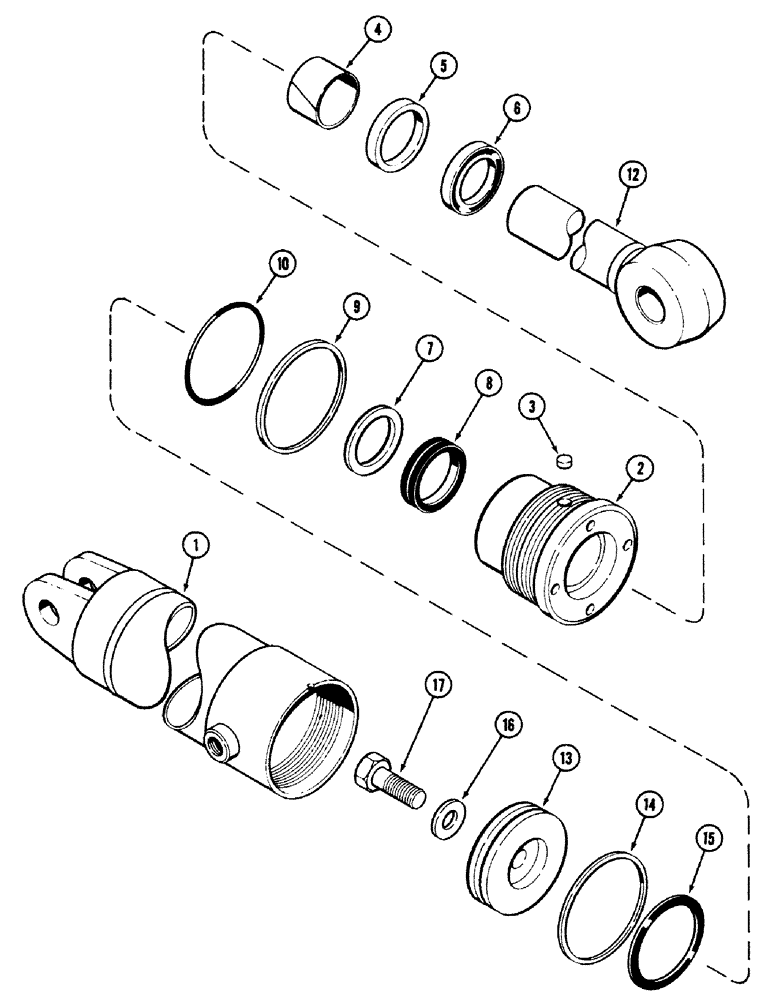

Запчасти Case IH 4694 (8-378) - HITCH LIFT CYLINDER ASSEMBLY, 4 INCH (102 MM) BORE X 9-27/32 INCH (250 MM) STROKE (08) - HYDRAULICS

G105435

CYLINDER

ASSEMBLY - lift, hitch, Includes: Ref. 1 - 17

2шт.

1

G33957

TUBE,18.11" L

ASSEMBLY - cylinder

1шт.

G104933

CYLINDER

GLAND ASSEMBLY - tube end, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- self-locking, gland

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of Cylinder Repair Kit, P/N G109477

1шт.

5

G34299

RING

- center bearing

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - outer

1шт.

Part of Cylinder Repair Kit, P/N G109477

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, gland

1шт.

Part of Cylinder Repair Kit, P/N G109477

1шт.

8

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- piston rod (Replaces D36969)

1шт.

Part of Cylinder Repair Kit, P/N G109477

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland

1шт.

Part of Cylinder Repair Kit, P/N G109477

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Kit, P/N G109477

1шт.

12

G105436

PISTON

ROD - piston, 1-1/2 inch (38 MM) diameter

1шт.

13

G104114

PISTON

- cylinder

1шт.

14

G31928

RING

- teflon, piston seal

1шт.

Part of Cylinder Repair Kit, P/N G109477

1шт.

15

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- piston

1шт.

Part of Cylinder Repair Kit, P/N G109477

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

G109477

KIT

- repair, cylinder, Includes: Ref. 4, 6, 7, 8, 9, 10, 14 and 15, Replaces G105509

1шт.
