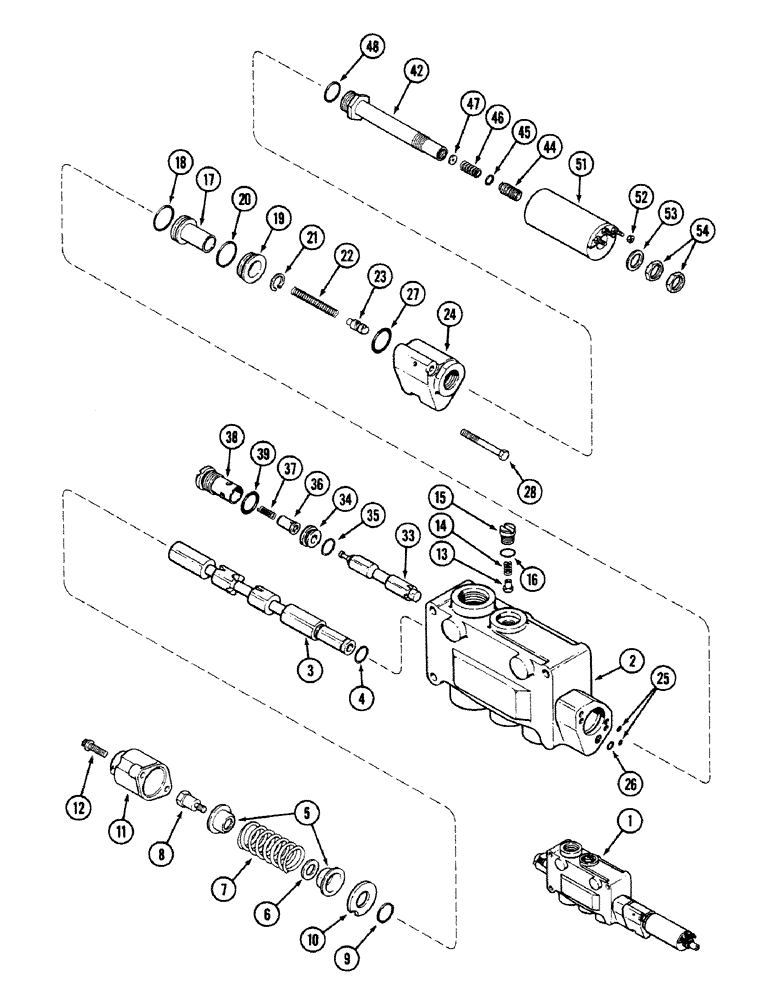

Запчасти Case IH 4694 (8-376) - HITCH CONTROL VALVE ASSEMBLY, A169630 (08) - HYDRAULICS

1

A169630

VALVE

ASSEMBLY - hitch control, Includes: Ref. 2 - 54

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - three way valve (Order A169630)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A169360)

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- valve spool

1шт.

5

A47963

WASHER

- spring seat

2шт.

6

F8235

WASHER

- spool screw

1шт.

7

A47975

SPRING

- spool

1шт.

8

H138248

SCREW,1/4" - 20 x 7/16"

- valve spool

1шт.

9

A47982

O-RING,0.489" ID x 0.629" OD

- valve spool

1шт.

10

H205070

RETAINER

- o-ring

1шт.

11

A47964

CAP

- end, valve

1шт.

12

166-505

12 PT SCREW,Flg, 1/4" - 28 x 7/8", Gr 8

SCREW - 12 point head, 1/4 NF x 7/8 inch

2шт.

13

F36081

VALVE POPPET

PLUNGER - lift check

1шт.

14

673625R1

SPRING

- lift check (Replaces F36082)

1шт.

15

H229203

PLUG

ASSEMBLY - lift check, Includes: Ref. 16

1шт.

16

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

- lift check plug

1шт.

17

A47965

SLEEVE

ASSEMBLY - valve spool, Includes: Ref. 18

1шт.

18

A47966

SEAL

O-RING - spool sleeve

1шт.

19

A47967

BUSHING

ASSEMBLY - spool sleeve, Includes: Ref. 20

1шт.

20

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- sleeve bushing

1шт.

21

A47973

RING

- snap, spool retainer

1шт.

22

A47974

SPRING

- valve spool

1шт.

23

A47968

SPOOL

- servo control

1шт.

24

A48962

HOUSING

CAP - solenoid adapter

1шт.

25

363226R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- valve body (Replaces T30271)

2шт.

26

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- valve body

2шт.

27

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- valve body

1шт.

28

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

2шт.

33

A48964

SPRING

PLUNGER - lockout

1шт.

34

A47977

SEAT

ASSEMBLY - poppet, Includes: Ref. 35

1шт.

35

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- poppet seat

1шт.

36

A47962

VALVE POPPET

POPPET - lockout

1шт.

37

A47976

SPRING

- poppet (Light blue)

1шт.

38

A48963

SPRING

PLUG ASSEMBLY - lockout, Includes: Ref. 39

1шт.

39

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- lockout plug

1шт.

42

A47957

CORE

ASSEMBLY - solenoid, Includes: Ref. 44 - 48

1шт.

44

A47959

PLUG

- adjustment

1шт.

45

A47983

O-RING,2.38mm Thk x 18.82mm ID

- adjustment plug

1шт.

46

A47961

SPRING

- solenoid

1шт.

47

A47960

WASHER

- solenoid core

1шт.

48

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- solenoid core

1шт.

51

A47947

COIL

ASSEMBLY - valve spool, Includes: Ref. 52

1шт.

52

129-13

NUT,#4-40

6шт.

53

A47955

WASHER

- coil

1шт.

54

A47950

NUT

- lock, coil

2шт.
