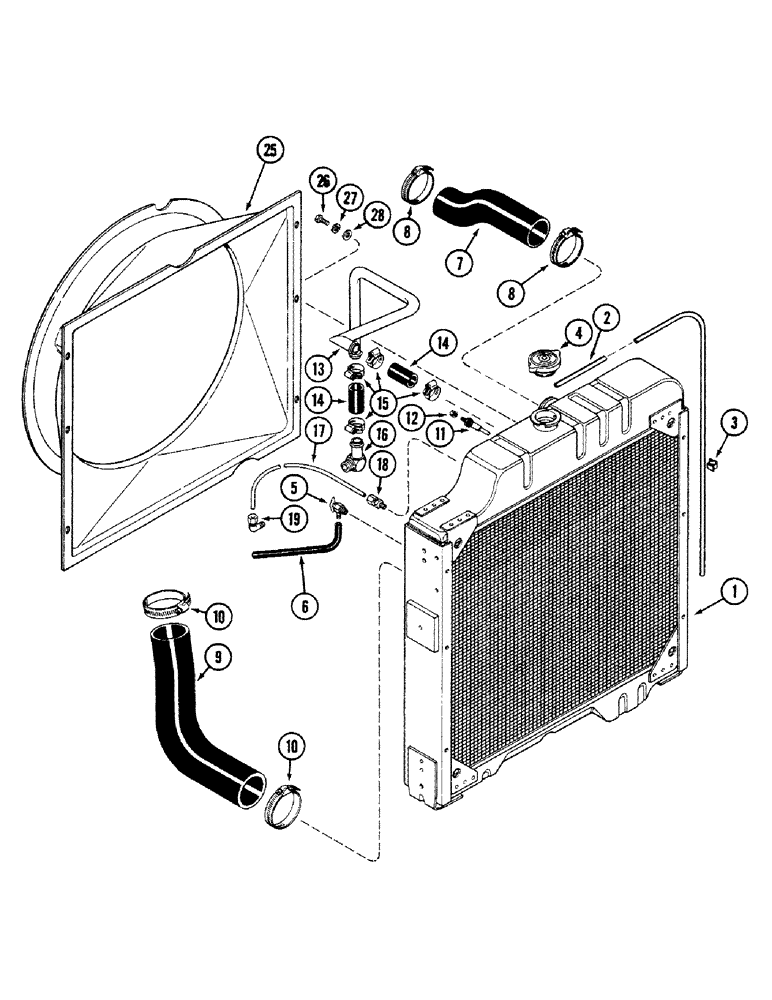

Запчасти Case IH 4694 (2-004) - RADIATOR AND HOSES, 504BDTI DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A166305
RADIATOR
- engine coolant, Includes: Ref. 2 and 3
1шт.
2
A45690
TUBE
- radiator overflow
1шт.
3
A62079
CLIP
- overflow tube retaining
2шт.
4
A166776
CAP
- pressure, 10 PSI (69 kPa)
1шт.
5
A27862
COCK, DRAIN
VALVE - drain, 1/4 inch PT
1шт.
6
A75533
HOSE,0.25" ID x 13.00", SAE SC-715
RADIATOR HOSE, , Drain Valve 0.25" ID x 13.00", SAE SC-715
1шт.
7
A150566
RADIATOR HOSE,63.5 mm ID x 313.7 mm, SAE 20R4
Upper, Radiator to Head 63.5 mm ID x 313.7 mm, SAE 20R4
1шт.
8
214-262
HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm
CLAMP - hose, 2-1/2 to 3-1/2 inch (64 x 89 MM)
2шт.
9
A150568
RADIATOR HOSE,76.20 mm ID x 345.40 mm, SAE 20R4
Lower, Water Pump to Radiator 76.20 mm ID x 345.40 mm, SAE 20R4
1шт.
10
214-264
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
CLAMP - hose, 2-13/16 to 3-3/4 inch (71 x 95 MM)
2шт.
11
A145513
SENSOR
PROBE - sensing, coolant level
1шт.
12
131-47
LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B
NUT - hex lock, no. 10-32
1шт.
13
A160303
TUBE
- balance, radiator to water pump
1шт.
14
A58681
HOSE
- balance tube
2шт.
15
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 MM)
4шт.
16
217-136
ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF
- barb stem, 1 hose x 1 inch PT
1шт.
17
A149565
TUBE
- vent, radiator to intercooler, 15 inch (381 MM) long (Order A138483, 99 inch (2 515 MM) long and, Serial Range: cut-length)
1шт.
18
222-5104
FITTING,5/16"-24 x 1/8" NPT
CONNECTOR - 5/16-24 x 1/8 inch PT (At radiator)
1шт.
19
222-5115
ELBOW,90 Degree, 5/16"-24 x 1/8" NPTF
- 90 degree, 5/16-24 x 1/8 inch PT (Intercooler tube)
1шт.
25
A151087
GUARD
SHROUD - fan
1шт.
27
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Fan shroud 3/8"
6шт.
28
195-104
WASHER,3/8"
- 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM), fan shroud
6шт.
Выбрано товаров: 23
