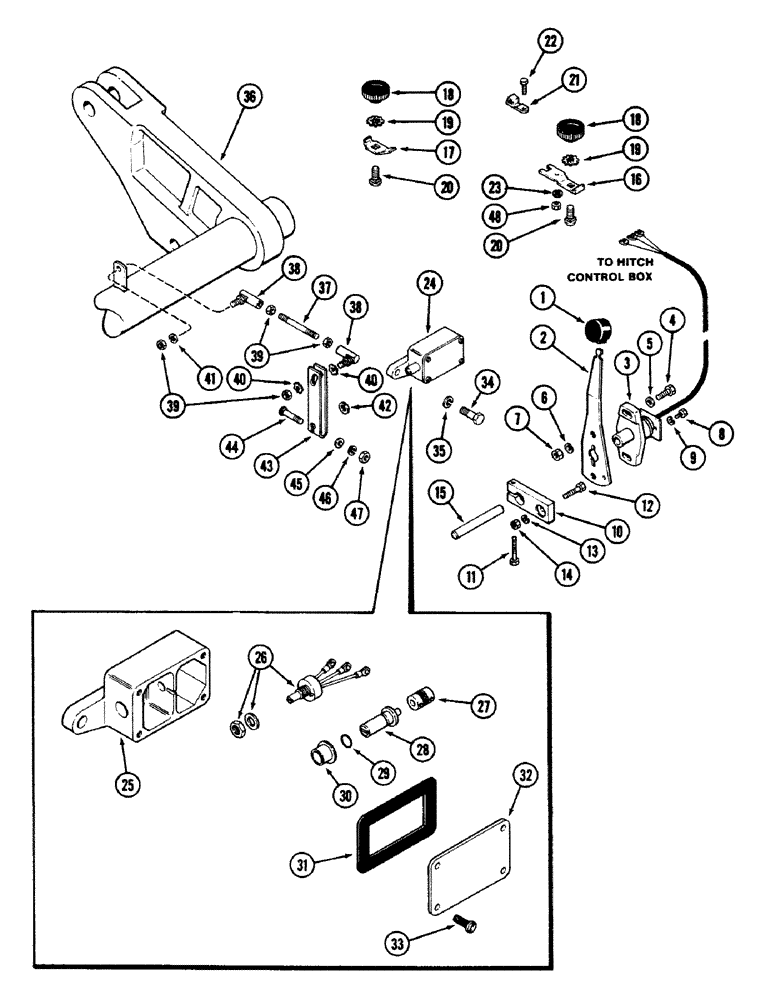

Запчасти Case IH 4694 (8-360) - HITCH DEPTH CONTROLS (08) - HYDRAULICS

1

A177437

KNOB

- hand lever (Replaces A167959)

1шт.

2

A169077

LEVER

- hand control, hitch

1шт.

3

A162359

TRANSMITTER

SENSOR ASSEMBLY - hitch lever (See Figure 4-104)

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

10

A162366

BLOCK

- friction

1шт.

11

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

A162326

SHAFT

- hand lever

1шт.

16

A162758

CLAMP

- lever stop, front

1шт.

17

A161030

CLAMP

- lever stop, rear

1шт.

18

A143181

NUT

- stop clamp

2шт.

19

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - external internal lock, 3/8 inch

2шт.

20

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

21

A141542

LEVER

TAB - lockout

1шт.

22

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

24

A162103

TRANSMITTER

SENSOR ASSEMBLY - rockshaft (See Figure 4-104), Includes: Ref. 25 - 33

1шт.

25

A162084

HOUSING

- sensor

1шт.

26

A162104

POTENTIOMETER,5000 Ohm, 8 VDC

Sensor 5000 Ohm, 8 VDC

1шт.

27

A162622

FLEXIBLE COUPLING

COUPLING - flexible

1шт.

28

A162085

SHAFT

- sensor

1шт.

29

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- sensor shaft (Order N8539)

1шт.

30

A164914

BUSHING,12.72mm ID x 15.93mm OD x 15.75mm L

Sensor Shaft

1шт.

31

A162090

GASKET

- housing cover

1шт.

32

A162089

COVER

- housing

1шт.

33

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- pan head slotted machine, 1/4 NC x 3/4 inch

4шт.

34

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

36

REF

INSTRUCTION

ROCKSHAFT - hitch (See Figure 9-380)

1шт.

37

A161914

ROD

- sensor control

1шт.

38

A60604

BALL JOINT

JOINT ASSEMBLY - ball, sensor rod

2шт.

39

129-122

NUT,5/16"-24, G5

4шт.

40

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

42

A162087

WASHER

- thrust, sensor

1шт.

43

A162755

LEVER

- sensor

1шт.

44

111-114

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/2", G2

BOLT - round head square neck, 1/4 NC x 1-1/4 inch

1шт.

45

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

1шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

47

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

48

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.
