(8-338) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT (CONTD)

Запчасти Case IH 4694 (8-338) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT (CONTD) (08) - HYDRAULICS

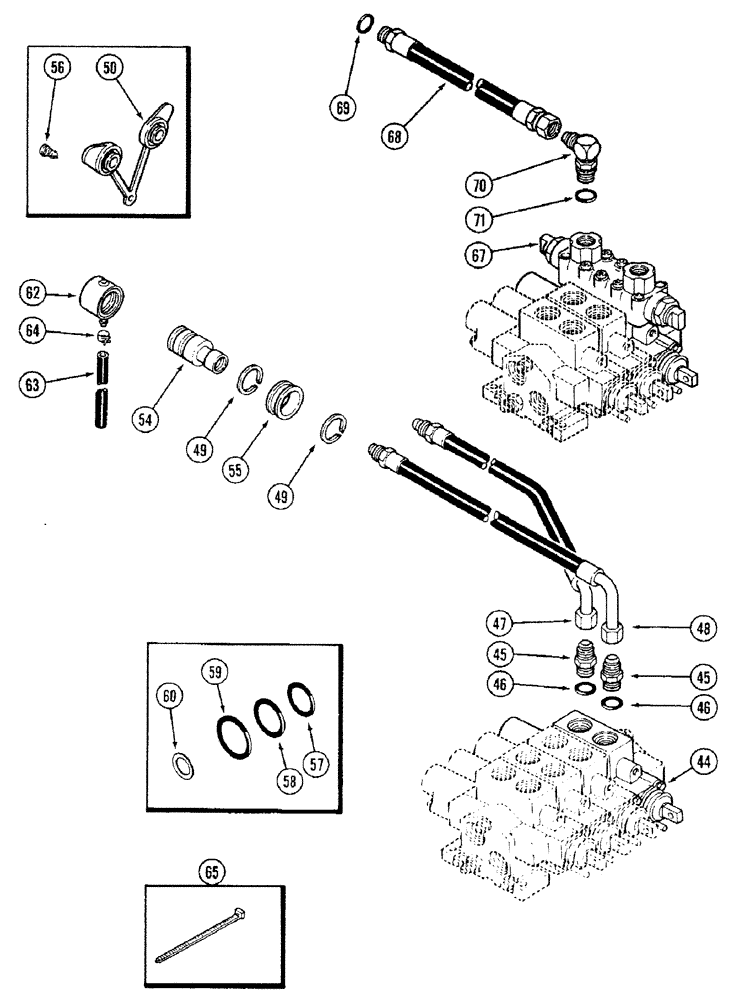

Схема запчастей Case IH 4694 - (8-338) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT (CONTD) (08) - HYDRAULICS
46
64
55
46
67
69
45
63
49
60
57
59
45
71
56
44
68
65
48
47
70
49
54
50
58
62
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

44

REF

INSTRUCTION

VALVE ASSEMBLY - remote (Without load check) (See Figure 8-336)

1шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 46

2шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

47

A162486

HOSE

ASSEMBLY - remote, short (With o-ring)

1шт.

48

A162487

HOSE

ASSEMBLY - remote, long (With o-ring)

1шт.

49

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

50

A145468

PLUG

- dust

1шт.

54

REF

INSTRUCTION

COUPLING ASSEMBLY - remote (See Figure 8-356)

2шт.

55

A149221

RETAINER

- coupling

2шт.

56

A162364

FASTENER

RETAINER - dust plug

1шт.

57

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- valve, 3/4 inch (19 MM) ID

1шт.

58

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- valve, 15/16 inch (24 MM) ID

2шт.

59

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- valve

1шт.

60

D77566

SHIM,.0030" Thk

Valve (0.076 mm) .0030" Thk

3шт.

A169191

REMOTE KIT - valve (Without load check) Includes: Ref. 49, 54 - 60 and 44) (Machinery item)

1шт.

62

A177479

CAP

ASSEMBLY - dust, Includes: Ref. 63 and 64

2шт.

63

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

2шт.

64

A180159

CLAMP,10.29mm - 12.32mm

- drain hose retaining

2шт.

65

R38237

STRAP

- retaining

1шт.

67

REF

INSTRUCTION

VALVE ASSEMBLY - remote (With load check) (See figure 8-348)

1шт.

68

D37184

HOSE

ASSEMBLY - remote (Used with Ref. 67), Includes: Ref. 69

2шт.

69

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

70

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/14-12 inch thread, Incl. Ref. 71

2шт.

71

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

A181447

COUPLING KIT - remote, Includes: Ref. 54 and 62 - 65 (Machinery item)

1шт.
